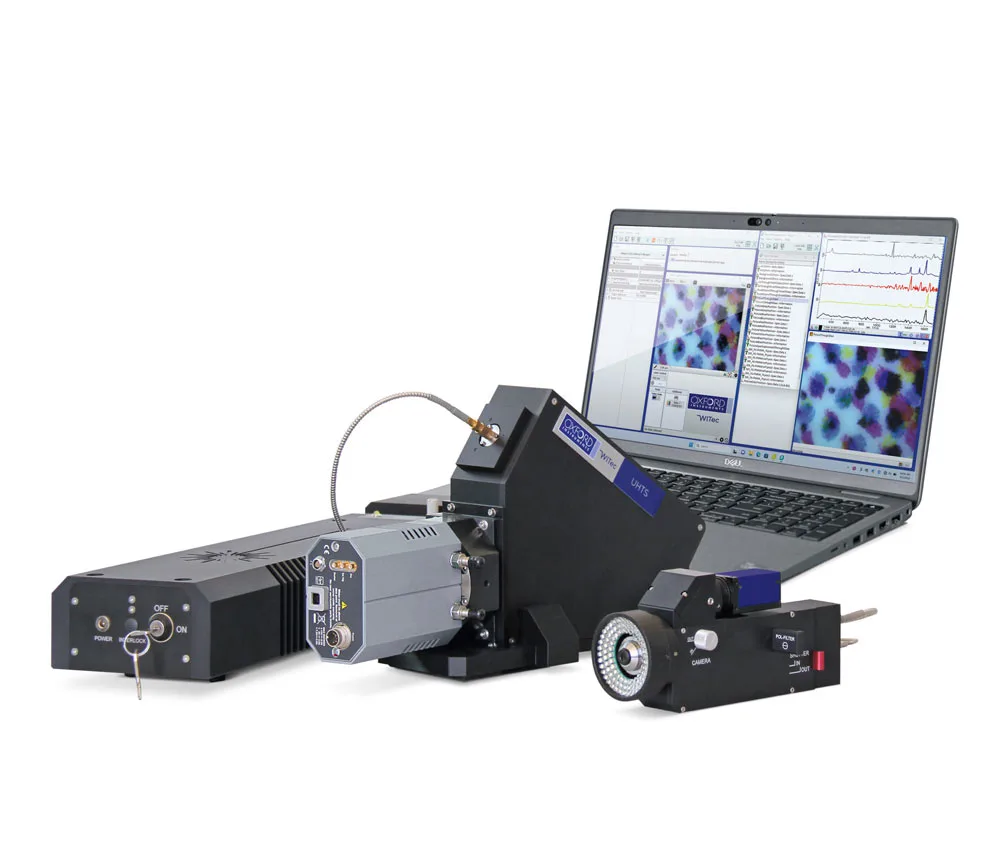

alphaCART Mobile Raman System
Brand: Oxford Instruments | Category: Nanotechnology
A mobile confocal Raman system for the applications where the laboratory has to travel to the sample. The Raman probe is positioned flexibly in front of bulky, immovable or precious objects that cannot be transported to a microscope or that will not fit under one. The system ships in a flight case of roughly 100 by 60 by 60 cm, covers about 90 to 3500 cm-1 depending on excitation wavelength, and is offered with 532 nm, 633 nm or 785 nm lasers at output powers from 30 mW to more than 200 mW. Spatial resolution is diffraction limited and the system runs under Microsoft Windows 11.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Laser wavelength options | 532, 633 or 785 nm; others on request |
| Published Raman range | Approximately 90–3,500 cm⁻¹; excitation dependent |
| Optional rolling flight case | Approximately 100 × 60 × 60 cm |
Selected manufacturer data for the named configuration. Optical, detector and sample-environment options are ordered separately unless included in the quotation. Measurement results depend on the sample, selected components and operating conditions. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
