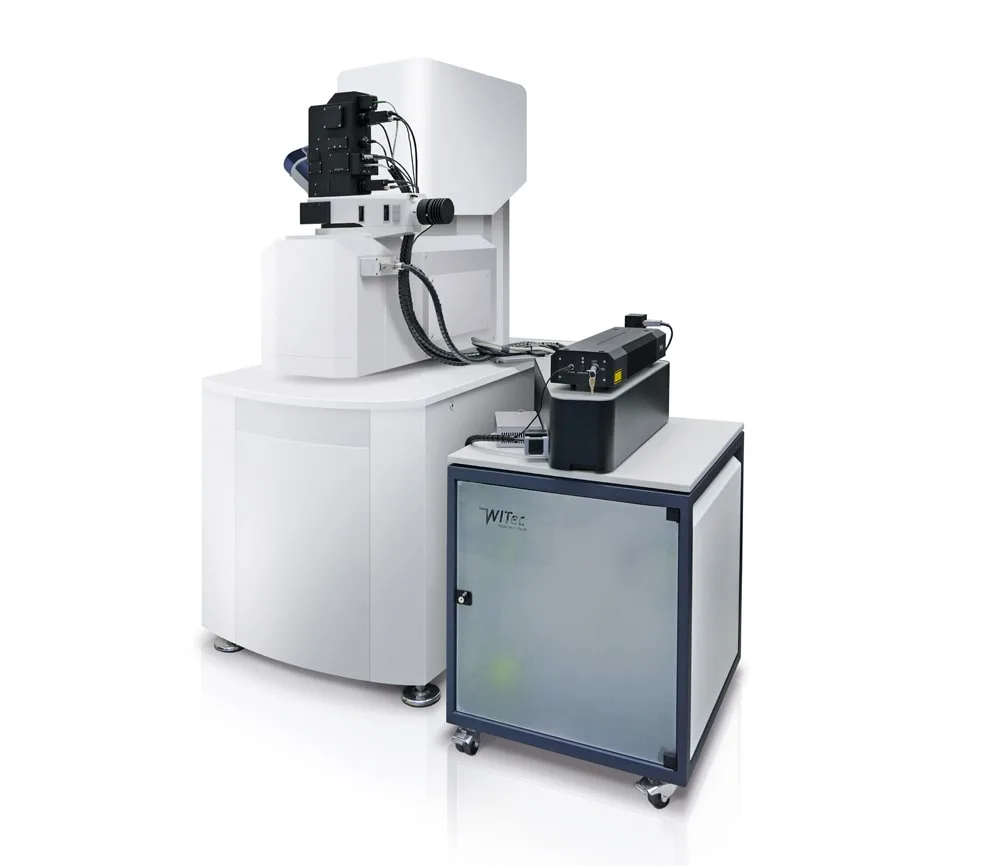

RISE Raman-SEM Microscope
Brand: Oxford Instruments | Category: Nanotechnology
Published by Oxford Instruments as the world's first fully integrated Raman imaging and scanning electron microscope, bringing every feature of a stand-alone SEM and of the confocal witec360 Raman microscope into one instrument. Switching between the Raman and SEM measurement positions is quick and the sample transfer between them is automated, so results correlate and images overlay directly. Diffraction limited lateral resolution is 200 to 300 nm, three dimensional images and depth profiles are supported, and an ultra-fast Raman imaging option brings integration time down to 0.76 ms per spectrum. A RISE-EDS configuration adds Raman-SEM-EDS in the same instrument.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Raman lateral resolution | 200–300 nm; optical configuration dependent |
| Optional Raman acquisition | Integration time down to 0.76 ms per spectrum |
| Sample transfer | Automated transfer within the SEM vacuum chamber |
Selected manufacturer data for the named configuration. Optical, detector and sample-environment options are ordered separately unless included in the quotation. Measurement results depend on the sample, selected components and operating conditions. Checked 2026-09-29.
