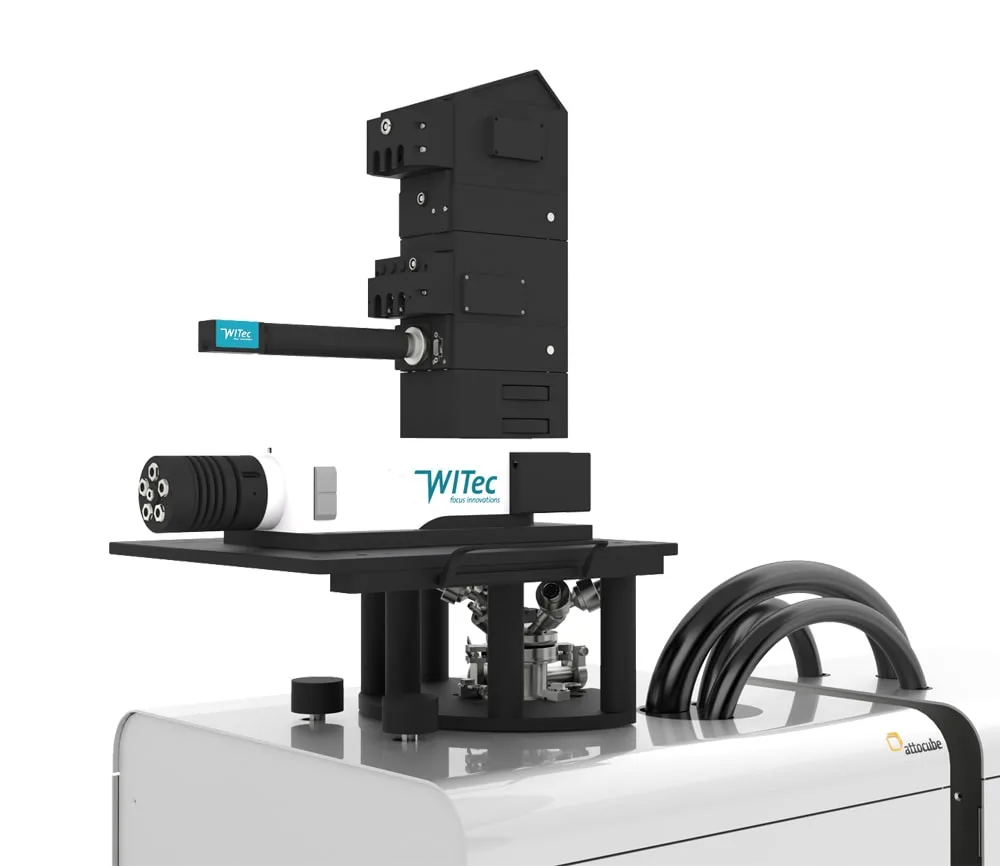

cryoRaman Cryogenic Raman Imaging Microscope
Brand: Oxford Instruments | Category: Nanotechnology
The performance and modularity of the witec360 Raman microscopes combined with advanced cryostat and nanopositioner technology, which puts experiments down to 1.8 K in high magnetic fields within easy reach. Solenoid magnets up to 12 T are available, as are vector magnets, using low vibration closed cycle attoDRY cryostats. Excitation runs from the visible to the NIR through cryogenic compatible high numerical aperture objectives, with polarisation control on both excitation and detection, and options for time correlated single photon counting and low wavenumber Raman detection.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Published temperature range | 1.8–300 K |
| Magnet options | Solenoid up to 12 T or vector magnet; specify configuration |
| Cryostat | Low-vibration closed-cycle attoDRY series |
| Nanopositioner | attocube AN series |
Selected manufacturer data for the named configuration. Optical, detector and sample-environment options are ordered separately unless included in the quotation. Measurement results depend on the sample, selected components and operating conditions. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
