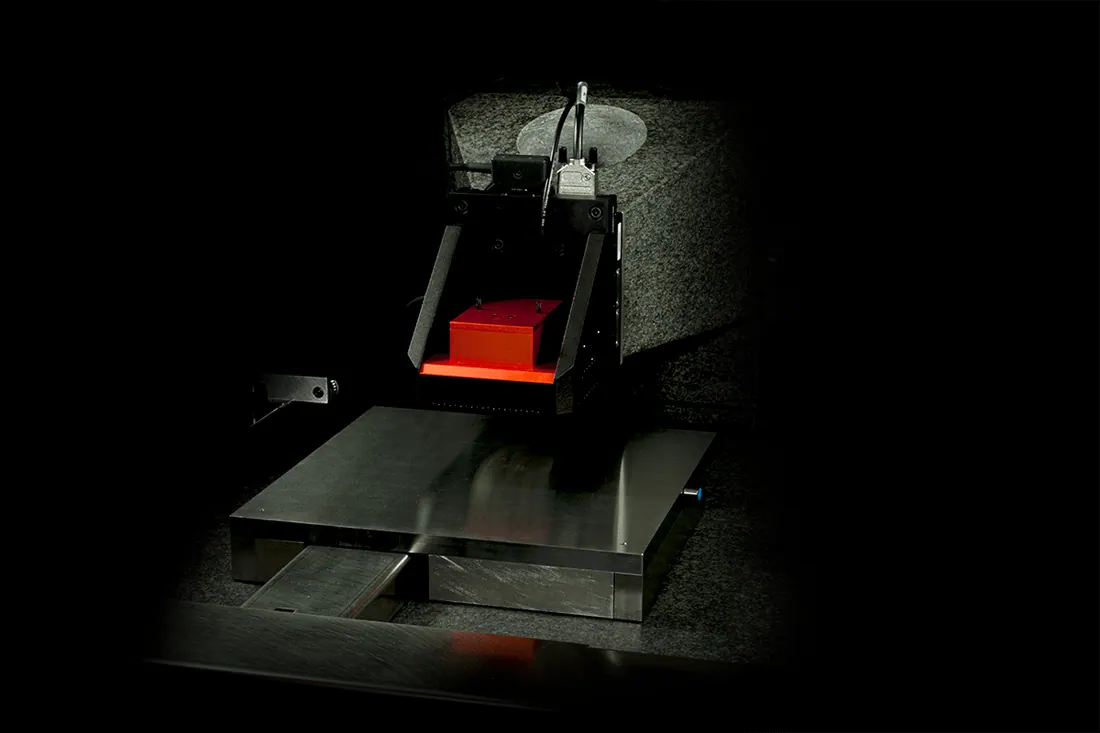

Alphacen 300 Flex
Brand: Nanosurf | Category: Nanotechnology
An industrial AFM built around the Flex-Mount tip-scanning head for samples that are too large or too heavy for a normal microscope. A dedicated acoustic enclosure cuts external noise, and extra translation or rotation axes can be added for awkward geometries.
Technical Specifications
| Parameter | Value |
|---|---|
| Sample size | up to 300 mm x 300 mm |
| Sample weight | up to 45 kg |
| Scan range | 100 um |
| Z approach stage | 50 mm travel |
| Controller | 24-bit CX controller |
| Sample observation | top and side view camera |
