LensAFM
Brand: Nanosurf | Category: Nanotechnology

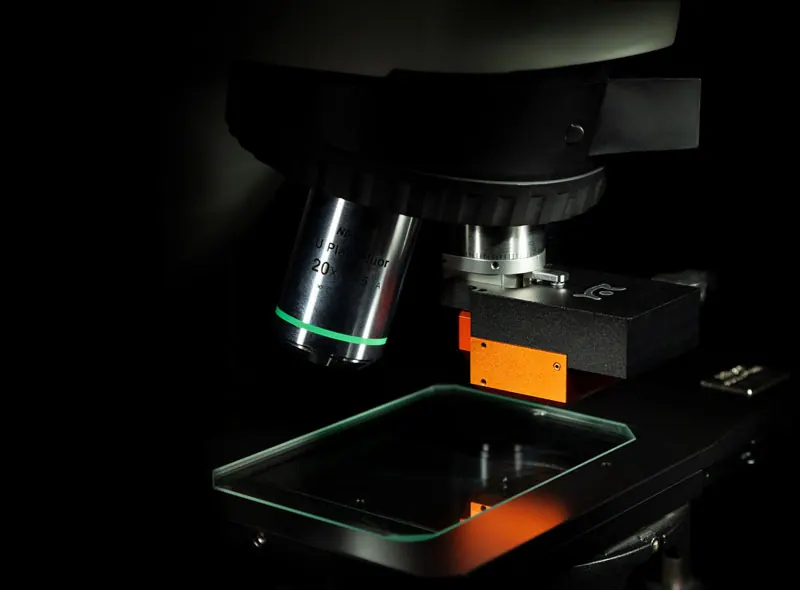

An AFM that mounts on the objective turret of an upright optical microscope or 3D profilometer, so a region found optically can be measured at nanometre resolution by rotating the turret. It returns 3D topography and can also map electrical, magnetic and mechanical properties.
Technical Specifications
| Parameter | Value |
|---|---|
| Mounting | objective turret of an optical microscope or 3D optical profilometer |
| Kinematic mounting repeatability | better than 10 um |
| Cantilever exchange repeatability | tip within 4 um of the same position |
| Integrated optics | 8x objective lens |
| Specification | Adapters available for Zeiss, Olympus, Leica, Nikon and Mitutoyo turrets |
| Modes | static, lateral, dynamic and phase imaging, C-AFM, EFM, MFM, force spectroscopy |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Nanosurf equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
