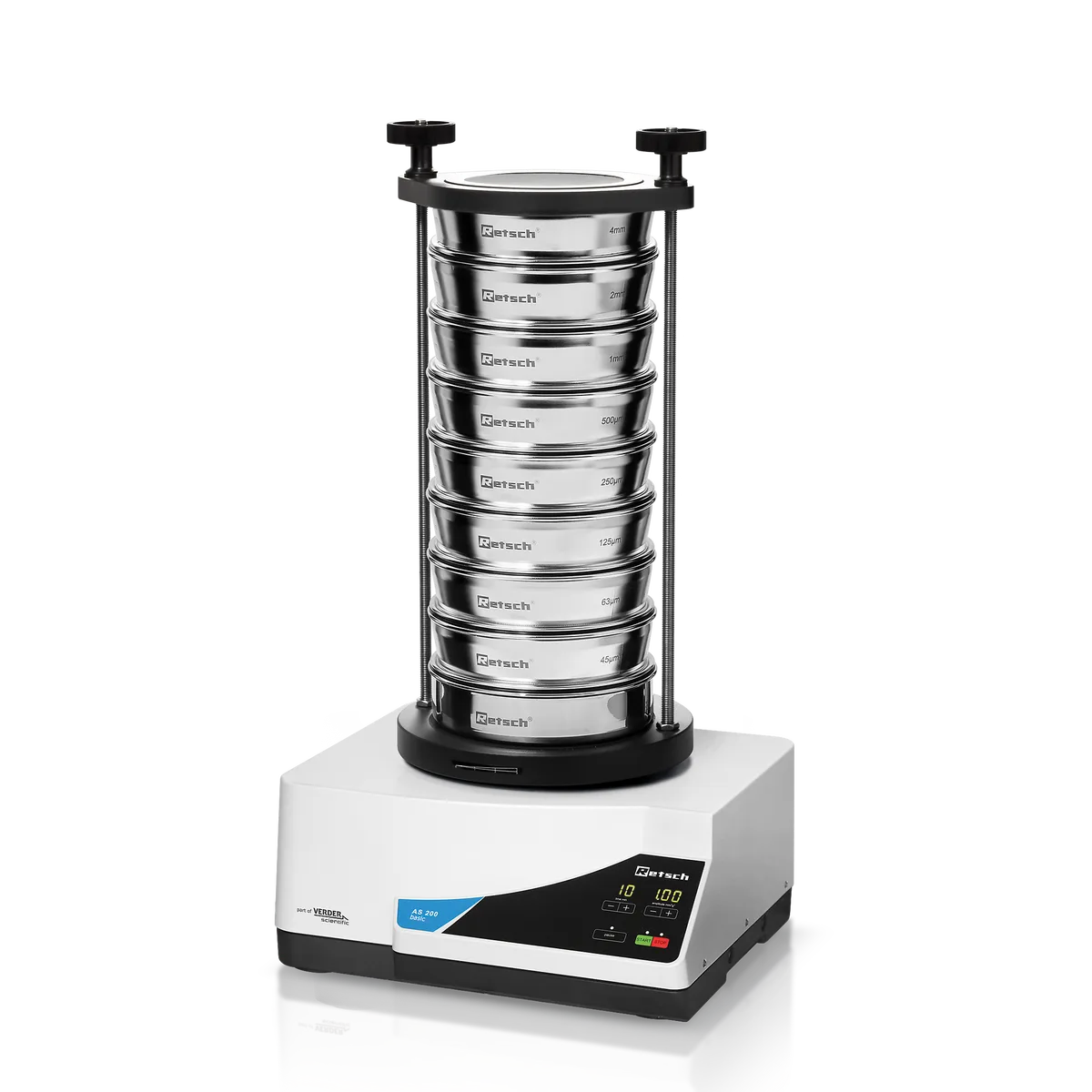

AS 200 basic: Vibratory Sieve Shaker
Brand: Retsch | Category: Scientific & Laboratory Equipment
Entry level vibratory sieve shaker for dry and wet sieve analysis on 100 mm, 200 mm and 203 mm sieves. The electromagnetic drive produces a three dimensional throwing motion with angular momentum, so material is distributed evenly across the whole mesh. Amplitude and sieving time are set on an analogue panel, making it a straightforward choice for routine grading work.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Measuring range | 20 µm - 25 mm |
| Max. batch / feed capacity | 3 kg |
| Time display | digital, 1 - 99 min |
| Suitable sieve diameters | 100 mm / 200 mm / 203 mm (8") |
| Max. height of sieve stack | 510 mm |
| Power connection | 1-phase |
| W x H x D | 417 x 212 x 384 mm |
| Net weight | ~ 35 kg |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
