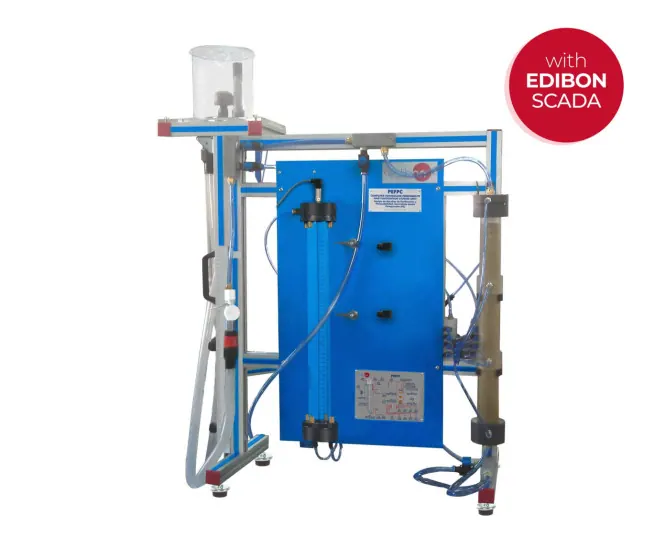

PEFPC: Computer Controlled Permeability/Fluidisation Studies Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A permeameter built as a transparent cylinder that holds a soil or granular sample. It measures the permeability of the sample under a controlled head and then shows the behaviour of the bed as upward flow lifts it into fluidisation.
Technical Specifications
| Parameter | Value |
|---|---|
| Permeameter | transparent acrylic cylinder of 50 mm diameter, 500 mm length |
| Three pressure sensors, range | 0 to 6 bar |
| Flow sensor, range | 0.2 to 2 l/min |
| Dimensions | 800 x 400 x 1100 mm approx |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
