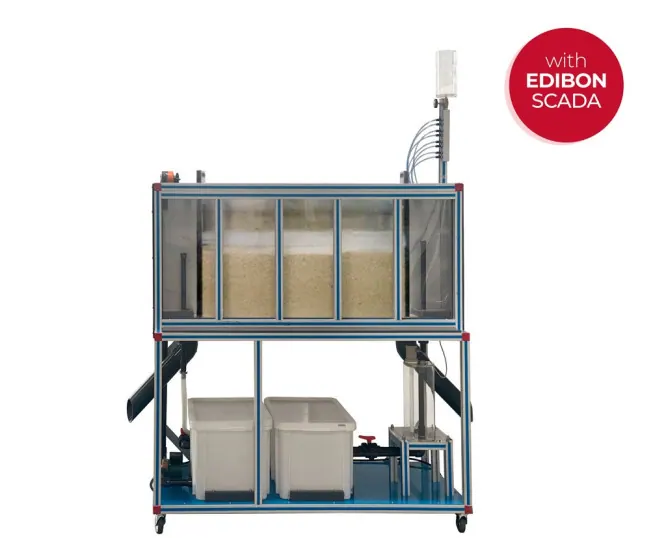

PDFDC: Computer Controlled Drainage and Seepage Tank
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A glass sided tank for demonstrating and measuring flow through permeable media and in the subsoil. Piezometers along the tank allow flow nets to be plotted for dams, sheet piles and drains, which is the standard seepage experiment in geotechnics.
Technical Specifications
| Parameter | Value |
|---|---|
| Feed water tank (capacity | 75 l) |
| Specification | Water pump, computer controlled (0.37 kW, 30 to 80 l/min at 20.1 to 12.8 m.w.c.) |
| Dimensions | 1500 x 700 x 2000 mm approx |
| Weight | 150 Kg approx |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
