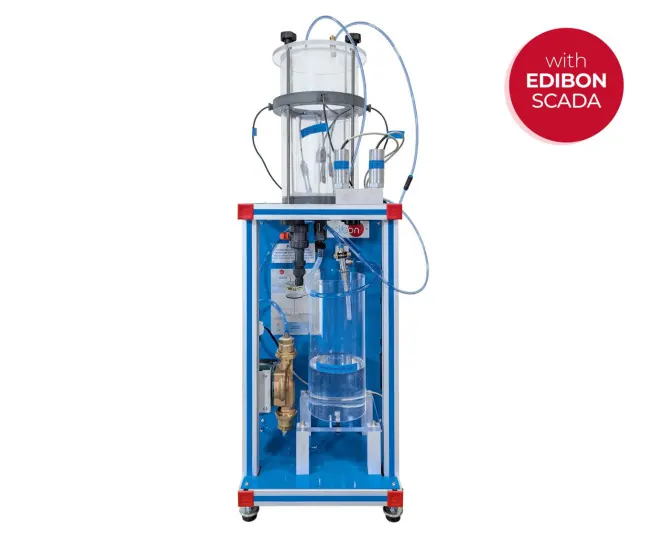

PAHSC: Computer Controlled Soil Moisture Suction Sand Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A unit for studying water retention in soil in terms of suction. Students derive the relationship between moisture content and suction for a sand sample and obtain the retention curve, which is the basis of unsaturated soil and drainage calculations.
Technical Specifications
| Parameter | Value |
|---|---|
| Computer controlled water pump, max. Flow | 3 l/min |
| Water jet pump, flow | 5 l/min, suction flow: 0.5 l/min |
| Pressure sensor, situated in the suction system, range | -1 to 1 bar |
| Pressure sensor, situated in the cylindrical tank, range | 0 to 2 bar |
| Flow sensor, situated in the suction system, range | 0.25 to 6.5 l/min |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
