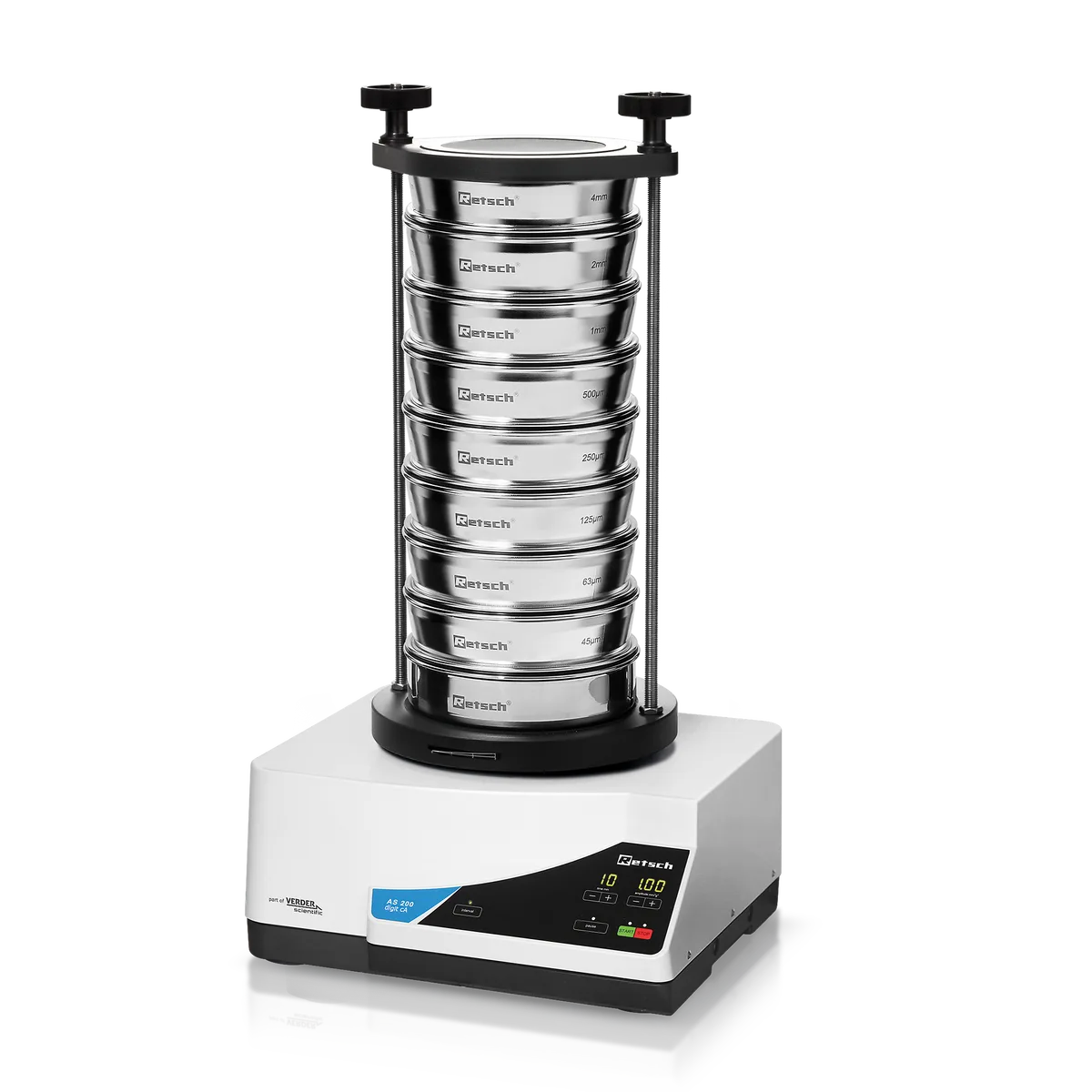

AS 200 digit cA: Vibratory Sieve Shaker
Brand: Retsch | Category: Scientific & Laboratory Equipment
Standard vibratory sieve shaker with digital setting and electronic control of the sieving amplitude, so the same amplitude is held whatever the mass of the sieve stack. Suitable for dry and wet sieving of powders, bulk materials and suspensions. Sieving time is set digitally and interval operation can be selected.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Measuring range | 20 µm - 25 mm |
| Max. batch / feed capacity | 3 kg |
| Time display | digital, 1 - 99 min |
| Suitable sieve diameters | 100 mm / 200 mm / 203 mm (8") |
| Max. height of sieve stack | 510 mm |
| Power connection | 1-phase |
| W x H x D | 417 x 212 x 384 mm |
| Net weight | ~ 35 kg |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Soil Mechanics Lab
- AS 200 control: Vibratory Sieve Shaker
Quality control sieve shaker with digital setting and control of every sieving parameter and memory for 99 standard operating procedures. The patented electromagnetic drive gives a three dimensional throwing motion, and sieve acceleration is held independent of mains frequency so results are reproducible between laboratories. It handles dry and wet sieving and carries a test certificate, and it can be calibrated.
- AS 200 basic: Vibratory Sieve Shaker
Entry level vibratory sieve shaker for dry and wet sieve analysis on 100 mm, 200 mm and 203 mm sieves. The electromagnetic drive produces a three dimensional throwing motion with angular momentum, so material is distributed evenly across the whole mesh. Amplitude and sieving time are set on an analogue panel, making it a straightforward choice for routine grading work.
- AS 300 control: Vibratory Sieve Shaker
Vibratory sieve shaker built for the larger 305 mm and 315 mm sieve diameters used for aggregate and construction material grading. It uses the same controlled electromagnetic three dimensional drive as the AS 200 control, with digital parameter setting and SOP memory. Dry and wet sieving are both supported.
