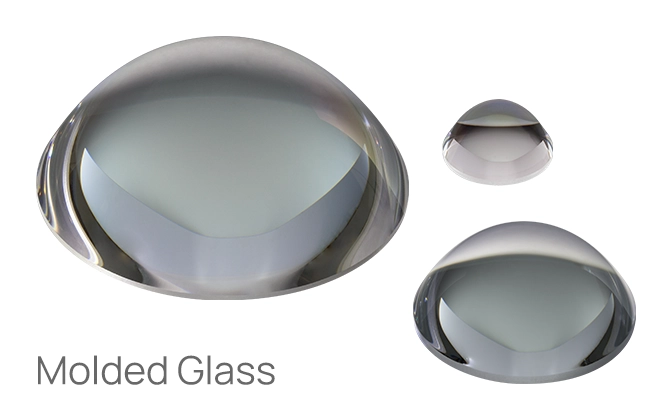

Aspheric Condenser Lenses (ACL Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Large aperture aspheres in B270 crown glass, shaped for collecting and collimating light from LEDs, lamps and other extended sources. High numerical apertures gather a wide cone of light with far less spherical aberration than a spherical condenser.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Lens diameters from 10 mm to 75 mm |
| Specification | Numerical apertures from 0.52 to 0.79 |
| Glass type | B270 optical crown glass |
| Uncoated wavelength range | 380 to 2100 nm |
| AR coating options | 350 to 700 nm or 650 to 1050 nm, average reflectance less than 0.5% |
| Surface quality | 80-50 scratch-dig; maximum temperature 250 degrees C |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
