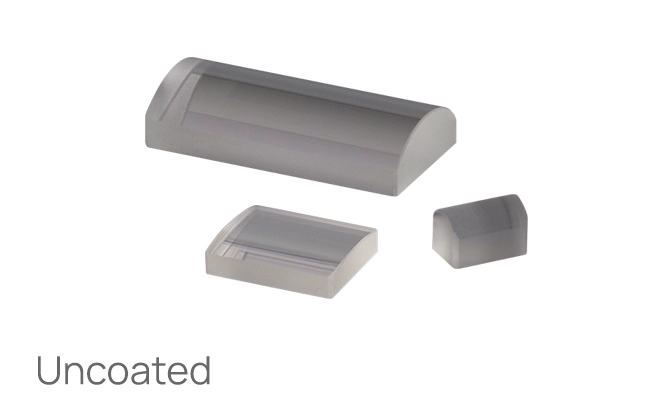

Plano-Convex Cylindrical Lenses, N-BK7, Uncoated
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Cylindrical lenses that focus or magnify in one axis only. They are used to circularise the elliptical output of a laser diode, form a line focus and give anamorphic beam shaping on an optical bench.
Technical Specifications
| Parameter | Value |
|---|---|
| Substrate | N-BK7, design wavelength 587.6 nm |
| Uncoated wavelength range | 350 nm to 2.0 micrometres |
| Surface quality | 60-40 scratch-dig |
| Focal length tolerance | plus or minus 1% |
| Centration | 5 arcmin or better for f up to 50 mm, 3 arcmin or better above |
| Specification | Also available with -A, -B or -C antireflection coatings |
