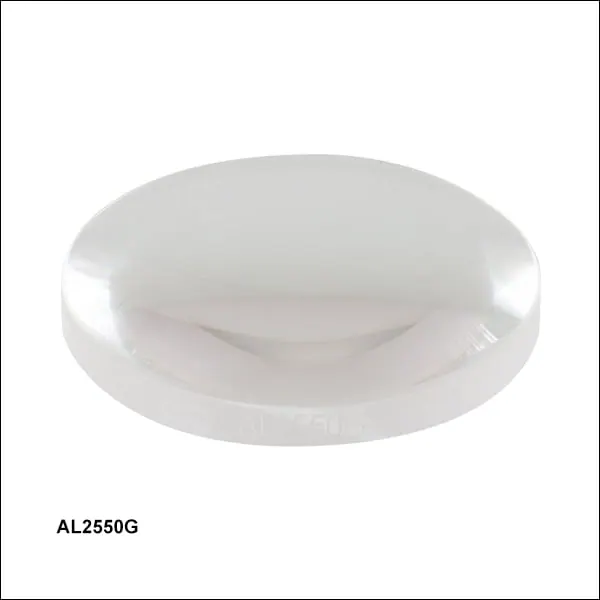

Diffraction-Limited High-Precision Aspheres, MRF Polished (AL Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Magnetorheologically polished aspheric lenses in N-BK7 or S-LAH64 that reach diffraction limited performance. They focus or collimate a laser beam in a single element and are used where a doublet would add too much wavefront error.
Technical Specifications
| Parameter | Value |
|---|---|
| Diameters | 12.5 mm, 25.0 mm, 50.0 mm, 75.0 mm or 100.0 mm |
| Numerical apertures | 0.20, 0.21 (N-BK7) or 0.52 (S-LAH64) |
| Aspheric surface accuracy | less than 55 nm |
| Slope error, peak to valley | less than 200 microradians |
| Strehl ratio | greater than 0.80 |
| Specification | Surface quality 40-20 scratch-dig, centration less than 1 arcmin |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
