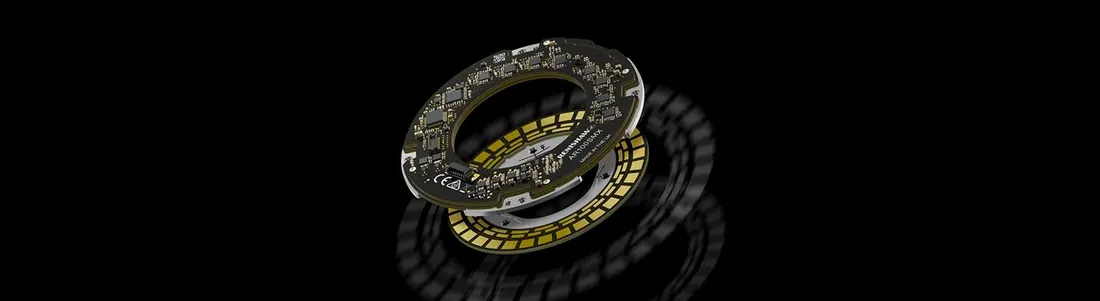

ASTRiA inductive rotary absolute encoder series
Brand: Renishaw | Category: Scientific & Laboratory Equipment
An inductive rotary absolute encoder that reads a multi-track scale on a passive rotor using electromagnetic induction. Because it needs no line of sight it tolerates dirt and oil, and built-in alignment flexures self-centre the rotor so no calibration is required.
Technical Specifications
| Parameter | Value |
|---|---|
| Total system accuracy | +/-40 arc seconds for the 100 mm diameter size |
| Resolution | 23 bit per revolution |
| Specification | Position updated up to 32,000 times per second over BiSS C |
| Communication | RS485 serial, BiSS C protocol |
| Specification | Tested to speeds up to 9,000 rpm |
| Specification | Built-in alignment flexures self-centre the rotor, no calibration needed |
