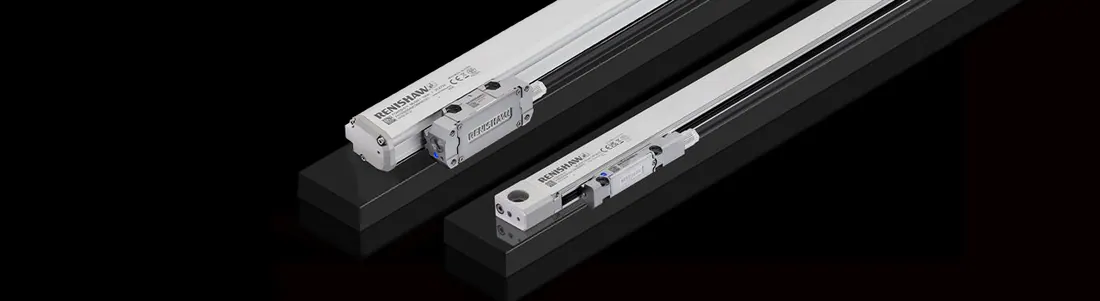

FORTiS enclosed optical absolute encoder series
Brand: Renishaw | Category: Scientific & Laboratory Equipment
A sealed linear absolute encoder that puts RESOLUTE technology inside a rigid extrusion for use in harsh environments such as machine tools. Tuned mass dampers in the readhead raise vibration resistance, and the non-contact design avoids mechanical wear.
Technical Specifications
| Parameter | Value |
|---|---|
| Measuring lengths | FORTiS-S 140 mm to 4240 mm, FORTiS-N 70 mm to 2040 mm |
| Resolutions | 0.5 nm, 1 nm, 1.25 nm, 10 nm, 12.5 nm, 25 nm, 50 nm |
| Maximum speed | 4 m/s |
| Accuracy grade at 20 degC | standard +/-5 um, high +/-3 um |
| Environmental protection | IP53 when installed correctly, IP64 with air purge |
| Vibration resistance | up to 30 g |
