ATOM optical incremental encoder series
Brand: Renishaw | Category: Scientific & Laboratory Equipment

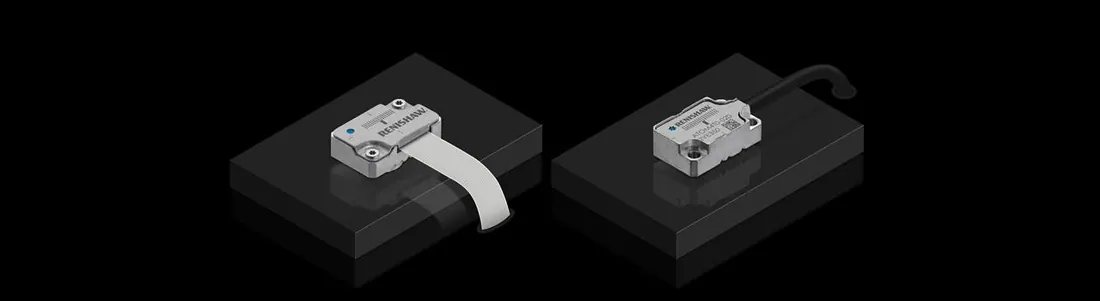

A miniature non-contact optical incremental encoder for linear and rotary applications where space is tight. Digital output comes from a choice of high-speed interpolator interfaces, and an integrated LED shows signal integrity during installation.
Technical Specifications
| Parameter | Value |
|---|---|
| Digital output resolutions | 10 um to 1 nm, RS422 |
| Analogue output | 1 Vpp at 20 um and 40 um |
| Maximum speed | 20 m/s |
| Readhead size | 20.5 mm x 12.7 mm x 8.35 mm, 7.3 mm high for the FPC version |
| Scale options | RTLF up to 10 m, RCLC up to 130 mm, RKLF up to 10 m |
| Interface options | Ti, Ri and the compact ACi PCB interface |
