ATOM DX optical incremental encoder series
Brand: Renishaw | Category: Scientific & Laboratory Equipment

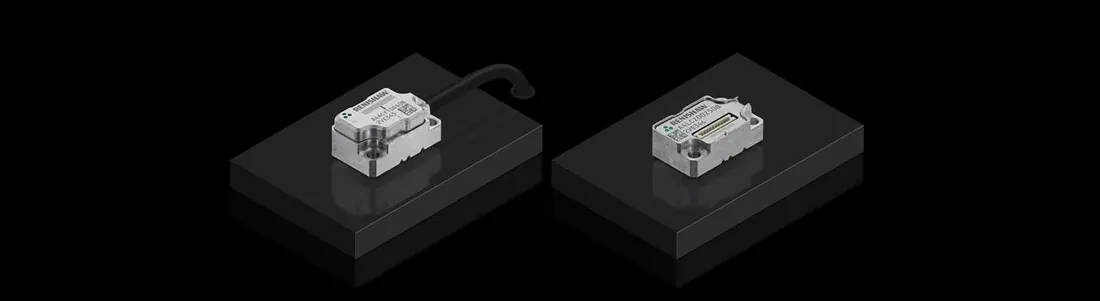

Renishaw's smallest incremental optical encoder with digital output taken straight from the readhead. Filtering optics and interpolation are built into the miniature body, which suits space constrained instruments and stages where performance cannot be reduced.
Technical Specifications
| Parameter | Value |
|---|---|
| Digital output resolutions | 10 um to 2.5 nm, RS422 |
| Maximum speed | 20 m/s |
| Readhead size | 20.5 mm x 12.7 mm x 10.85 mm, 7.85 mm high for the top exit variant |
| Scale options | RTLF up to 10 m, RCLC up to 130 mm, RKLF up to 10 m |
| Scale accuracy | +/-3 um/m on RCLC, +/-5 um/m on RTLF20 and RTLF40H |
| Scale periods | 20 um or 40 um |
