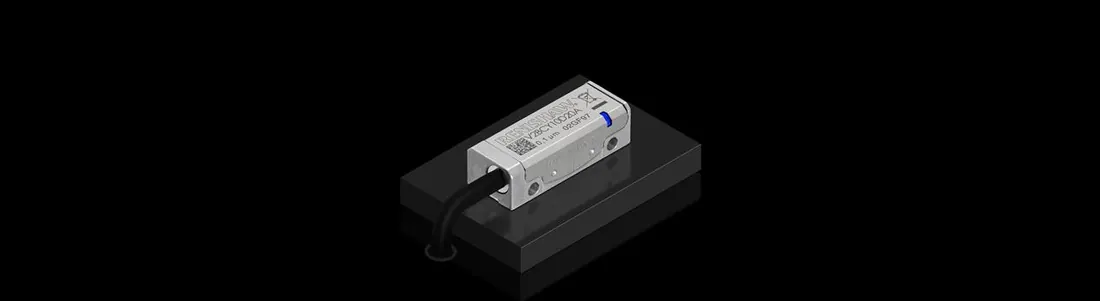

VIONiC optical incremental encoder series
Brand: Renishaw | Category: Scientific & Laboratory Equipment
Renishaw's highest performing incremental open optical encoder, giving digital position feedback direct from the readhead. Filtering optics and on-board interpolation produce very low sub-divisional error without needing an adaptor or separate interface unit.
Technical Specifications
| Parameter | Value |
|---|---|
| Digital output resolutions | 5 um to 2.5 nm, RS422 |
| Maximum speed | 12 m/s |
| Speed at 0.1 um resolution | up to 3.63 m/s |
| Maximum clock rate | 50 MHz |
| Readhead size | 35 mm x 13.5 mm x 10 mm |
| Rotary graduation accuracy with REXM rings | +/-3.97 to +/-0.38 arc seconds |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Renishaw equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
