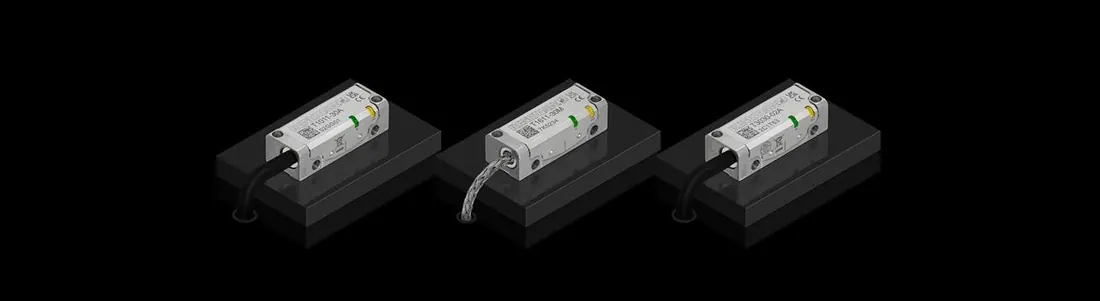

TONiC optical incremental encoder series
Brand: Renishaw | Category: Scientific & Laboratory Equipment
A compact non-contact incremental encoder for highly dynamic precision motion. Filtering optics in the readhead give very low jitter and low sub-divisional error, and the external Ti interface takes the resolution down to 1 nm for linear, partial arc and rotary axes.
Technical Specifications
| Parameter | Value |
|---|---|
| Digital output resolutions | 5 um to 1 nm, RS422 |
| Analogue output | 1 Vpp at 20 um |
| Maximum speed | 10 m/s |
| Readhead size | 35 mm x 13.5 mm x 10 mm |
| Scale accuracy | +/-1 um/m on RELM20 ZeroMet spar, +/-5 um/m on RTLC20 tape |
| Application variants | Ultra-High Vacuum and Functional Safety |
