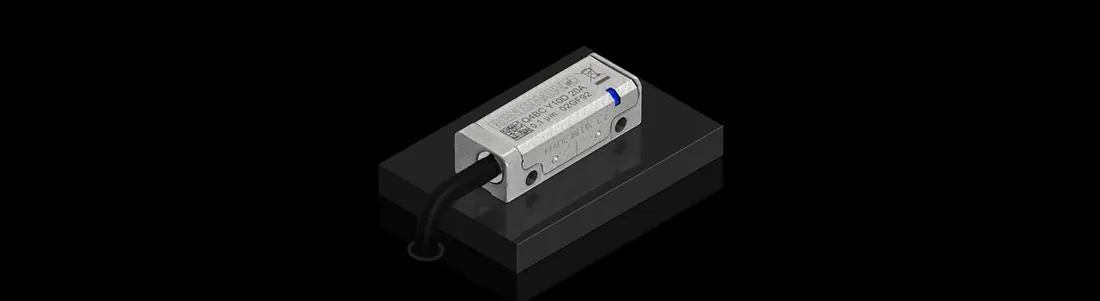

QUANTiC optical incremental encoder series
Brand: Renishaw | Category: Scientific & Laboratory Equipment
A compact incremental open optical encoder with digital or analogue output. It has wide installation and operating tolerances, built-in calibration functions and linear or rotary scale options, which makes it straightforward to fit on production machinery.
Technical Specifications
| Parameter | Value |
|---|---|
| Digital output resolutions | 10 um to 50 nm, RS422 |
| Analogue output | 1 Vpp at 40 um |
| Maximum speed | 24 m/s |
| Readhead size | 35 mm x 13.5 mm x 10 mm |
| Linear scale lengths | up to 10 m on RTLC40, up to 20 m on RKLC40-S |
| Scale accuracy | up to +/-5 um/m on RTLC40H |
