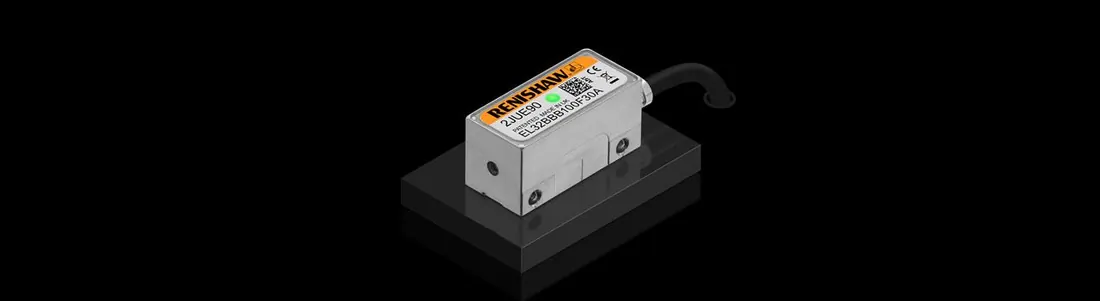

EVOLUTE optical absolute encoder series
Brand: Renishaw | Category: Scientific & Laboratory Equipment
A true absolute optical encoder built on RESOLUTE technology but using a 50 um scale period, which gives wider installation tolerances and better resistance to contamination. Position is available immediately at start-up without any axis movement.
Technical Specifications
| Parameter | Value |
|---|---|
| Resolution | 50 nm to 500 nm |
| Maximum speed | 100 m/s |
| Scale option | RTLA50 with optional FASTRACK, up to 10.2 m |
| Scale accuracy | +/-10 um/m |
| Readhead size | 36 mm x 16.5 mm x 17.2 mm |
| Serial outputs | BiSS C, FANUC, Mitsubishi, Panasonic, Siemens DRIVE-CLiQ, Yaskawa |
