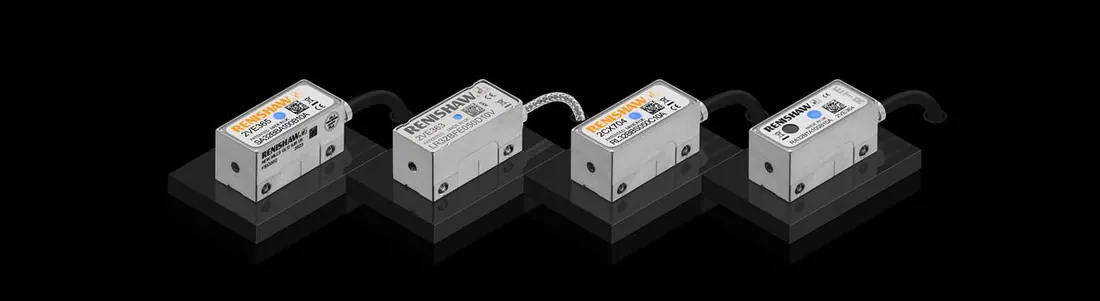

RESOLUTE optical absolute encoder series
Brand: Renishaw | Category: Scientific & Laboratory Equipment
A true absolute optical encoder for linear, partial arc and rotary axes. Position is known at switch-on without any movement, and low sub-divisional error with very low jitter gives smooth velocity control in demanding motion systems and nano-positioning stages.
Technical Specifications
| Parameter | Value |
|---|---|
| Resolution | 1 nm to 100 nm |
| Maximum speed | 100 m/s, 36,000 rpm |
| Linear scale accuracy | up to +/-1 um/m |
| Rotary graduation accuracy | 4 to 0.4 arc seconds |
| Readhead size | 36 mm x 16.5 mm x 17.2 mm |
| Serial outputs | BiSS C, FANUC, Mitsubishi, Panasonic, Siemens DRIVE-CLiQ, Yaskawa |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Renishaw equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
