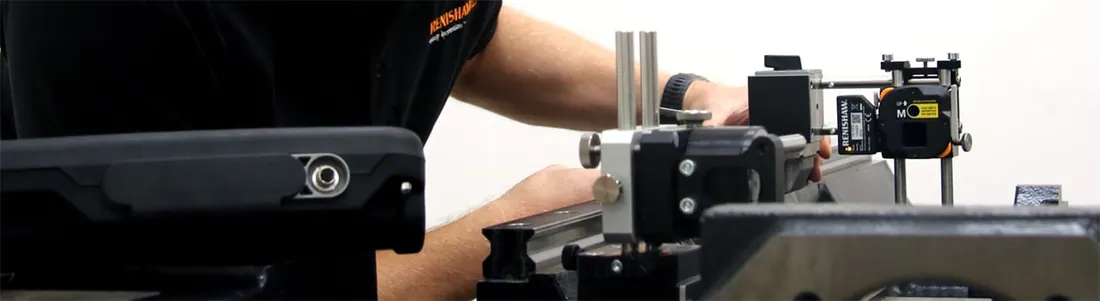

XK10 alignment laser system
Brand: Renishaw | Category: Scientific & Laboratory Equipment
A digital alignment laser system used to measure and adjust geometric and rotational errors while a machine is being built or serviced. It replaces dial gauges, autocollimators and metrology artefacts for checking that rails are straight, square, flat, parallel and level.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Launch unit measures up to 30 m when used with the M unit |
| Specification | M unit and S unit configurations measure up to 20 m |
| Specification | Measures straightness, squareness, parallelism, level, spindle direction and coaxiality |
| Specification | Display unit gives up to 30 hours of portable operation on the rechargeable battery |
| Specification | Machine tool fixturing kit available |
| Recommended recalibration period | two years in a normal environment |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Renishaw equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
