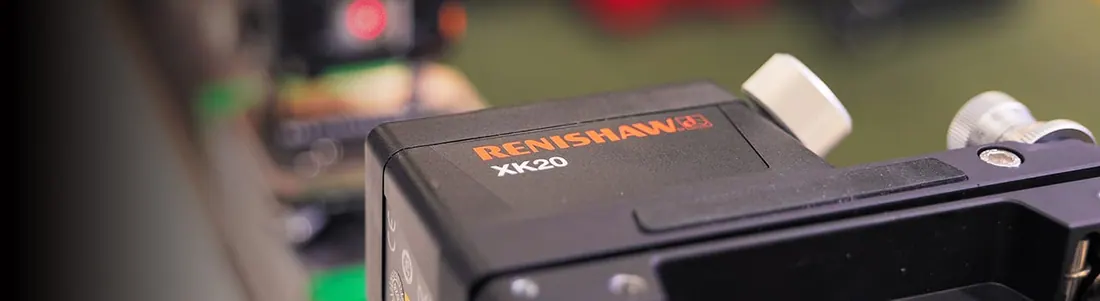

XK20 alignment laser system
Brand: Renishaw | Category: Scientific & Laboratory Equipment
Renishaw's second generation alignment laser system for machine build and service. It measures straightness, parallelism, squareness and level on linear and rotary axes, and reports to ISO 230-11 through the CARTO XK20 app, which also carries ISO 10791 and 3070 tolerances.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Launch unit measures up to 40 m when used with the M unit |
| Specification | M unit and S unit configurations measure up to 20 m |
| Specification | Long range straightness mode with data stitching, patent pending |
| Specification | Straightness results can be extracted from parallelism and squareness tests |
| Specification | Reports in conformance with ISO 230-11 |
| Recommended recalibration period | two years in a normal environment |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Renishaw equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
