QC20 ballbar
Brand: Renishaw | Category: Scientific & Laboratory Equipment

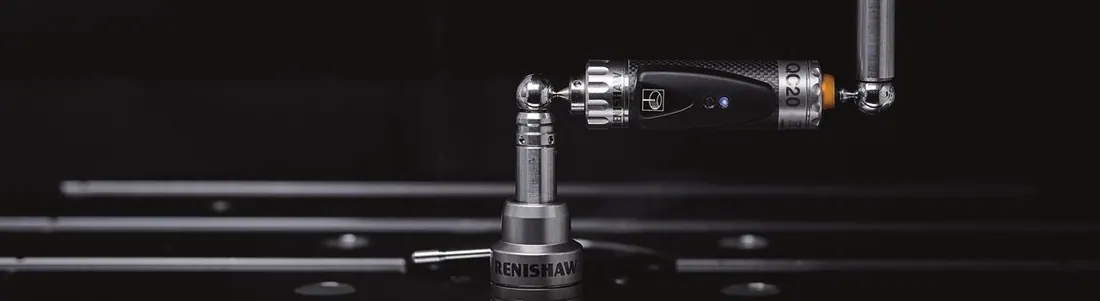

A telescoping ballbar with precision balls at each end that measures small changes in radius while a machine tool follows a programmed circular path. It shows up geometric, dynamic and play related positioning errors in a test that takes ten to twenty minutes.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Data capture over a 360 degree circle or a 220 degree partial arc |
| Specification | Supplied with a 100 mm ballbar assembly plus 50, 150 and 300 mm extension bars |
| Test radii | 100, 150, 250, 300, 400, 450, 550 and 600 mm |
| Specification | Up to 1350 mm radius with additional extension bars |
| Specification | Bluetooth Low Energy wireless connection |
| Recommended recalibration period | one year in a normal environment |
