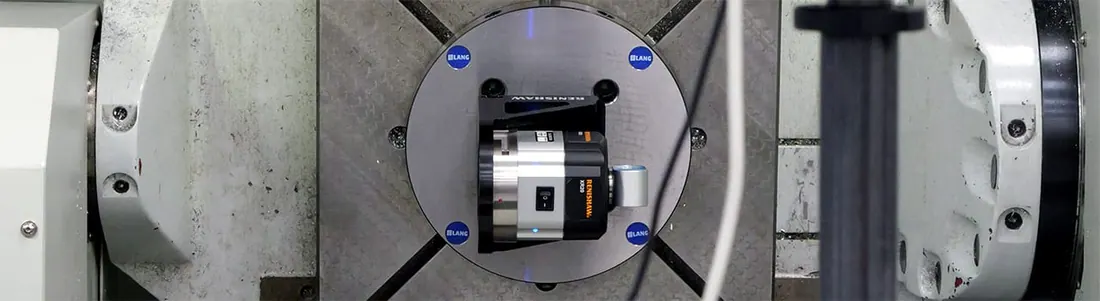

XR20 rotary axis calibrator
Brand: Renishaw | Category: Scientific & Laboratory Equipment
A wireless calibrator for rotary axes on machine tools, stages and jigs. An integrated angular retroreflector sits on a servo controlled axis whose position is read by a high accuracy encoder machined directly onto the main bearing, and it works with XL-80 and XM-60 lasers.
Technical Specifications
| Parameter | Value |
|---|---|
| Accuracy | +/-1 arc second |
| Specification | Wireless operation with Bluetooth |
| Specification | Works with the XL-80 laser interferometer and the XM-60 multi-axis calibrator |
| Specification | Specified accuracy applies in all orientations |
| Specification | Modular mounting rings and adaptor plates for different rotary tables |
| Recommended recalibration period | 36 months in a normal environment |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Renishaw equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
