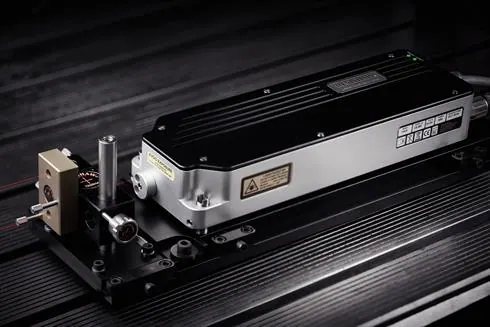

HS20 long range laser encoder
Brand: Renishaw | Category: Scientific & Laboratory Equipment
A laser head that works with an external linear optics kit to form a non-contact interferometric encoder for long axes. It gives sub-micron position feedback on large machine tools and removes the hysteresis, backlash and cyclic errors of rack and pinion or ballscrew feedback.
Technical Specifications
| Parameter | Value |
|---|---|
| Compensated system accuracy | +/-1.0 ppm |
| Range | 0 to 60 m |
| Digital quadrature output resolutions | 79, 158, 316 and 633 nm |
| Analogue output signal period | 316 nm |
| Output update rates | 1, 2, 4, 8 and 16 MHz |
| Maximum speed | up to 2 m/s |
