RMAP multi-axis periscope
Brand: Renishaw | Category: Scientific & Laboratory Equipment

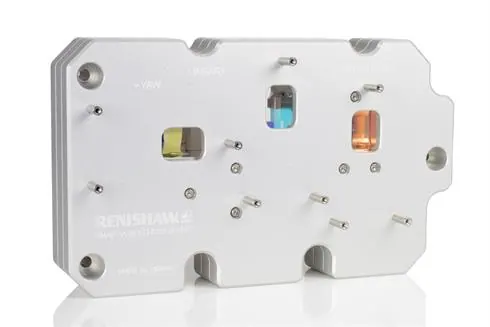

A periscope that lets three RLD10-X3-DI differential interferometer heads measure linear position, pitch and yaw along one axis of a high performance XY stage. The small beam footprint keeps the target mirrors light, and it bolts to a vacuum chamber or metrology frame.
Technical Specifications
| Parameter | Value |
|---|---|
| Angular range | +/-30 arc seconds |
| Beam footprint | 18 mm x 35 mm |
| Specification | Used with an RLU laser unit and three RLD10-X3-DI interferometer heads |
| Specification | Single mounting face secured with four bolts |
| Specification | Enables six degrees of freedom measurement on XY stages |
