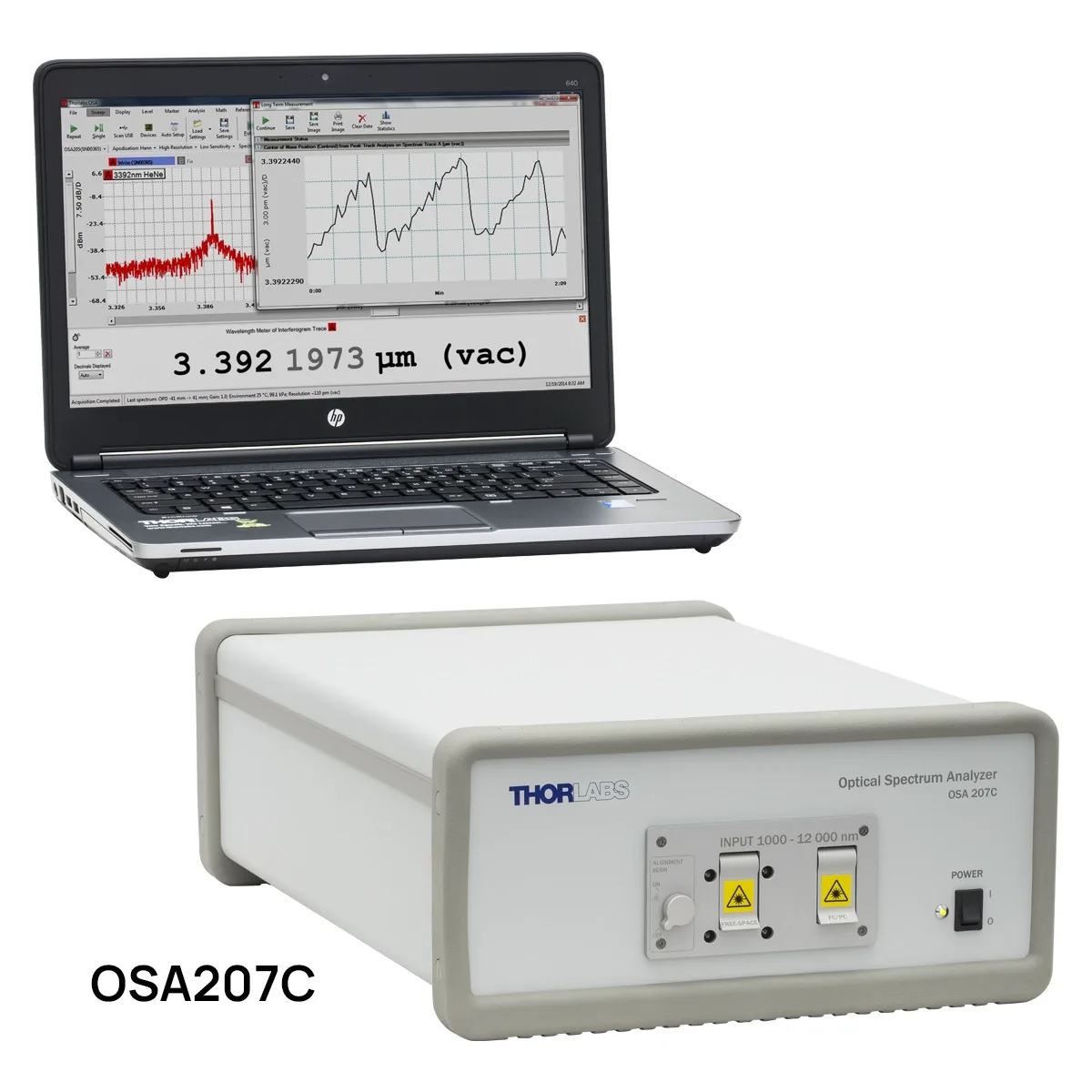

OSA Series Optical Spectrum Analyzers
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Fourier transform based analysers that act as both a broadband spectrometer and a wavelength meter. Seven models cover 250 nm to 12 micrometres, taking either an FC/PC fibre input or a collimated free space beam.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Wavelength coverage from 250 nm to 12.0 micrometres across the range |
| Spectral resolution | 7.5 GHz (OSA20xC) or 1.9 GHz (Redstone OSA30x) |
| Spectral accuracy | plus or minus 2 ppm or plus or minus 0.2 ppm |
| Wavelength meter accuracy | plus or minus 1 ppm or plus or minus 0.5 ppm |
| Optical rejection ratio | 30 dB or 40 dB |
| Free space input | up to 6 mm or 10 mm collimated beam diameter |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
