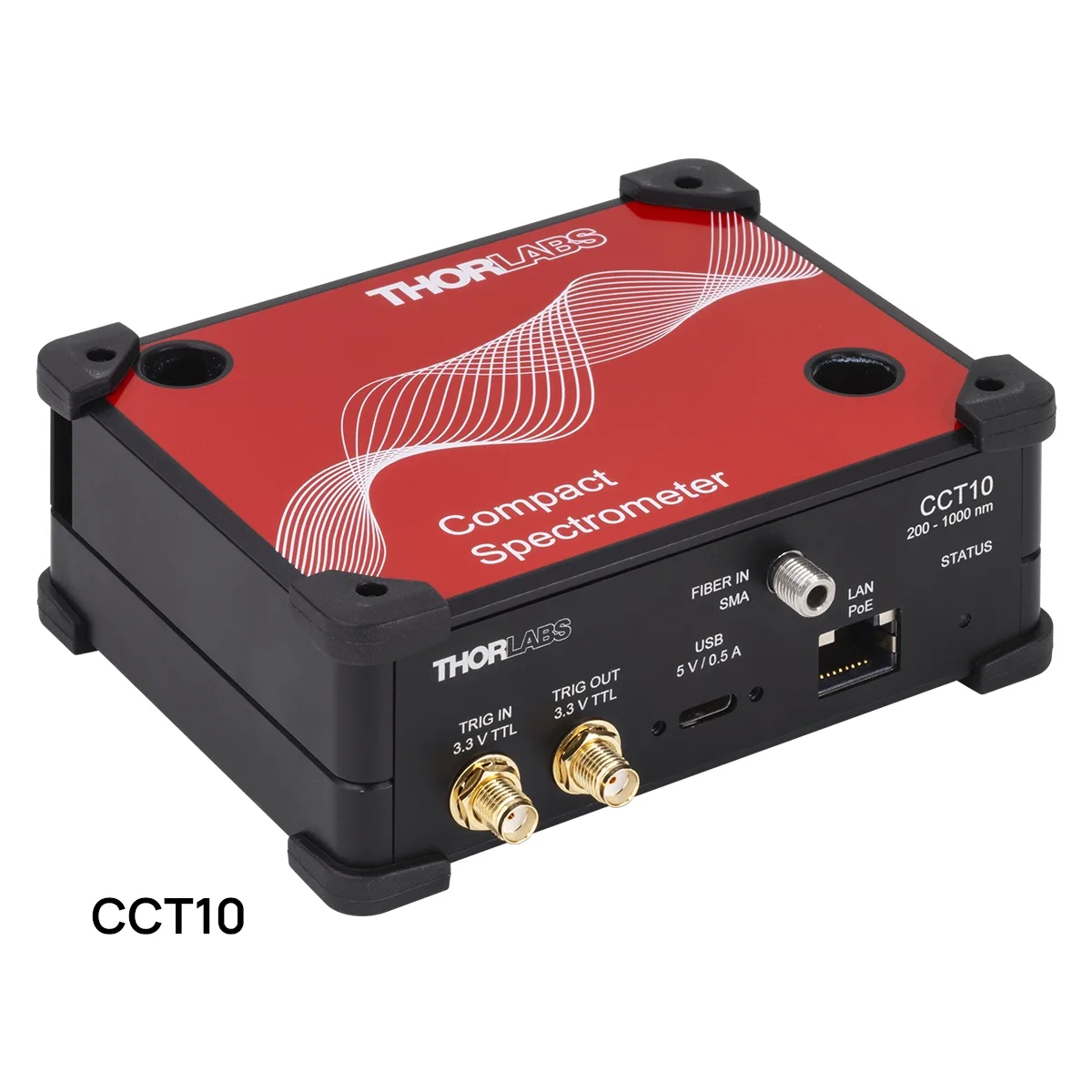

CCT Series Compact Spectrometers
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Crossed Czerny-Turner spectrometers with a line array detector, an SMA fibre input and an internal shutter for fast background subtraction. Four models cover the ultraviolet through to the short wave infrared for absorption, emission and fluorescence work.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength ranges | 200 to 1000 nm, 350 to 700 nm, 500 to 1000 nm and 950 to 1700 nm |
| Resolution | less than 0.5 nm to less than 9.0 nm depending on model |
| Detector | 2048 or 4096 pixel CMOS, or 256 pixel InGaAs |
| Integration time | 10 microseconds to 30 s |
| Signal to noise ratio | up to 2800:1; internal shutter switching under 10 ms |
| Dimensions | 112.0 mm x 93.8 mm x 41.5 mm, weight 0.5 kg; USB or Ethernet |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
