AZtec LayerProbe
Brand: Oxford Instruments | Category: Nanotechnology

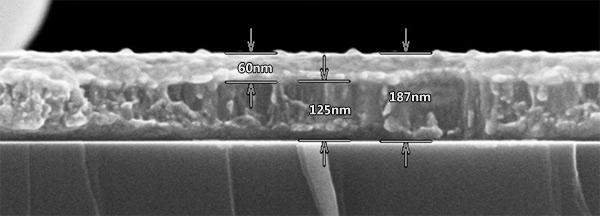

LayerProbe is a thin film analysis option for the AZtec energy dispersive X-ray system. It characterises multiple layers beneath the specimen surface without destroying the sample, offering higher resolution than dedicated thin film measurement tools at lower cost.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Thickness and composition of multiple layers from 2 nm to 2000 nm |
| Specification | Lateral resolution down to 200 nm |
| Specification | Non-destructive analysis |
| Specification | Runs as an option on the AZtec EDS microanalysis system in a SEM or FIB-SEM |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
