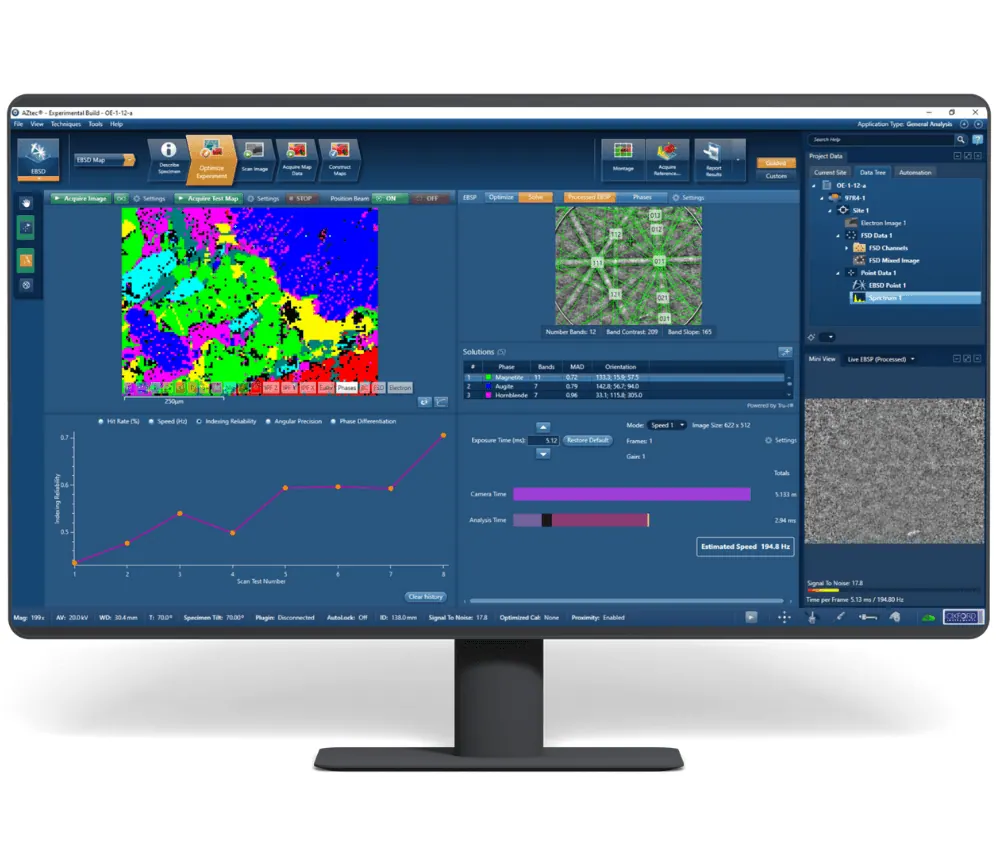

AZtecHKL
Brand: Oxford Instruments | Category: Nanotechnology
AZtecHKL is the Oxford Instruments electron backscatter diffraction acquisition software. It carries out data collection and analysis in real time, drives the Symmetry S3 detector, and is set up for nanoscale orientation mapping by transmission Kikuchi diffraction.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Real time EBSD data acquisition and analysis |
| Specification | Drives the Symmetry S3 CMOS EBSD detector |
| Specification | Simultaneous EBSD and EDS acquisition through AZtecSynergy |
| Specification | Optimised for transmission Kikuchi diffraction orientation mapping |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
