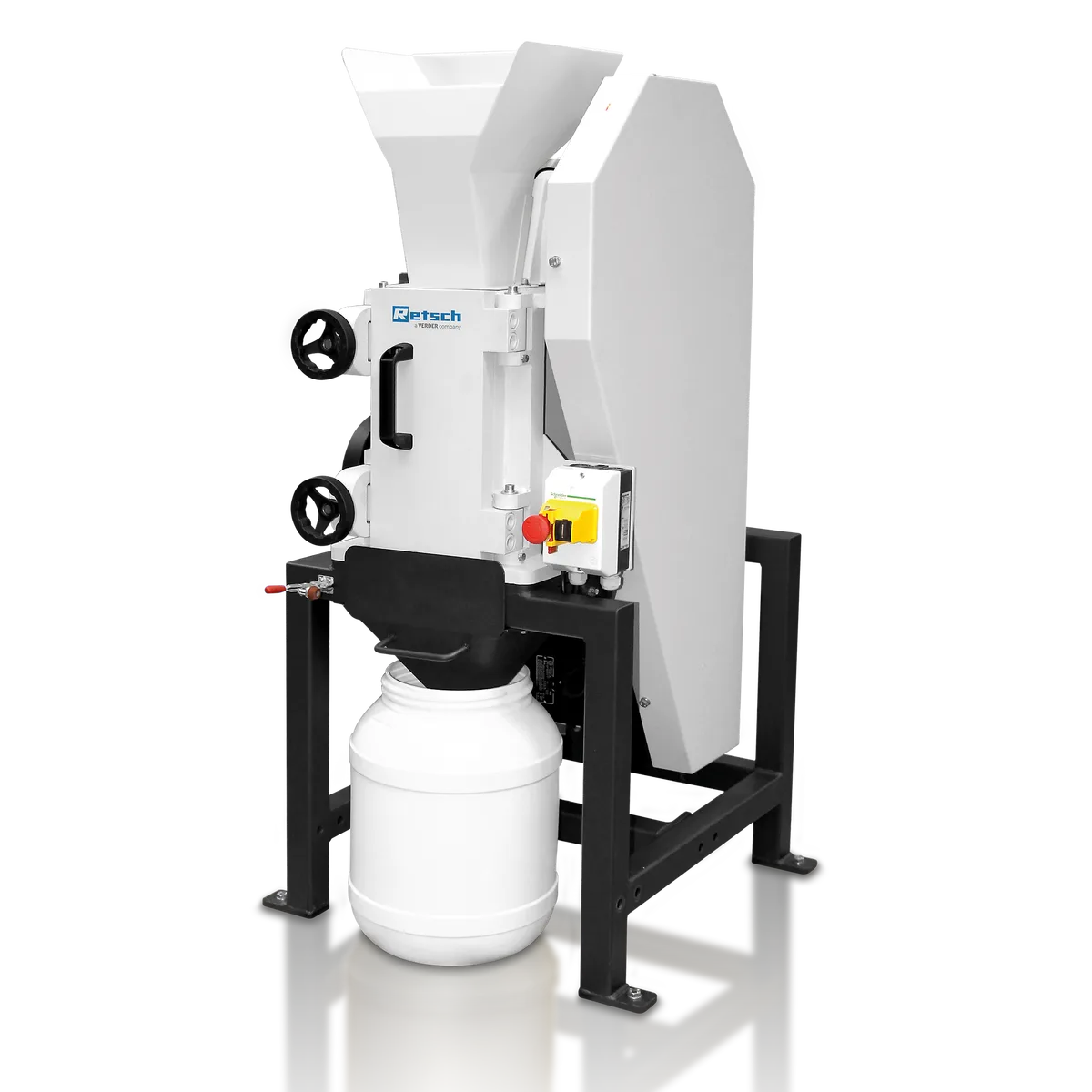

BB 250: Jaw Crusher
Brand: Retsch | Category: Scientific & Laboratory Equipment
Jaw crusher built around ergonomic handling, with the crushing chamber and collection vessel positioned for easy access during repeated sample changes. It handles large feed pieces of medium hard, hard, brittle and tough material and reduces them to below 2 mm at up to 300 kg per hour.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 120 x 90 mm |
| Final fineness | 2 mm |
| Material of grinding tools | manganese steel, stainless steel, tungsten carbide, steel for heavy-metal free grinding, stainless steel 316L, NiHard4 |
| Jaw width | 120 x 90 mm |
| Gap width setting | 0 - 30 mm |
| Zero point adjustment | 3.4 mm |
| Collector capacity | 10 l |
| Drive power | 3.0 kW |
| Power connection | 3-phase |
| W x H x D closed | 695 x 1399 x 719 mm |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
