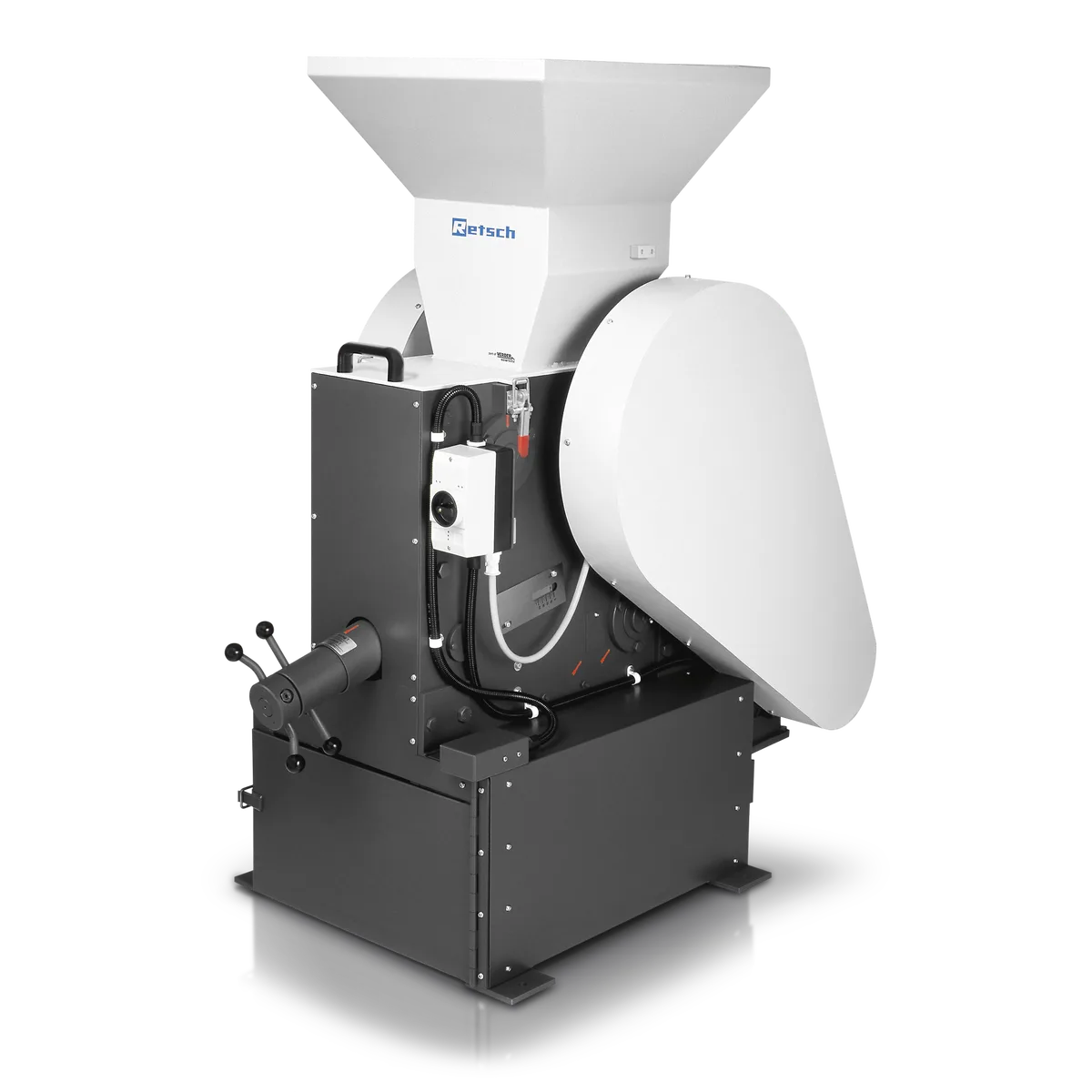

BB 300: Jaw Crusher
Brand: Retsch | Category: Scientific & Laboratory Equipment
Jaw crusher aimed at large feed size, accepting bigger pieces than the BB 200 and reducing them to below 5 mm at up to 600 kg per hour. The wider gap setting range suits primary crushing of rock, ore and construction material before a secondary mill takes the sample to analytical fineness.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 130 mm |
| Final fineness | 5 mm |
| Material of grinding tools | manganese steel, stainless steel, tungsten carbide, steel 1.1750 (for heavy-metal free grinding) |
| Jaw width | 138 x 198 mm |
| Gap width setting | 1 - 40 mm |
| Collector capacity | 27.5 l / 35.4 l |
| Drive power | 3.0 kW |
| Power connection | 3-phase |
| W x H x D closed | 670 x 1450 x 1600 mm |
| Net weight | ~ 700 kg |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
