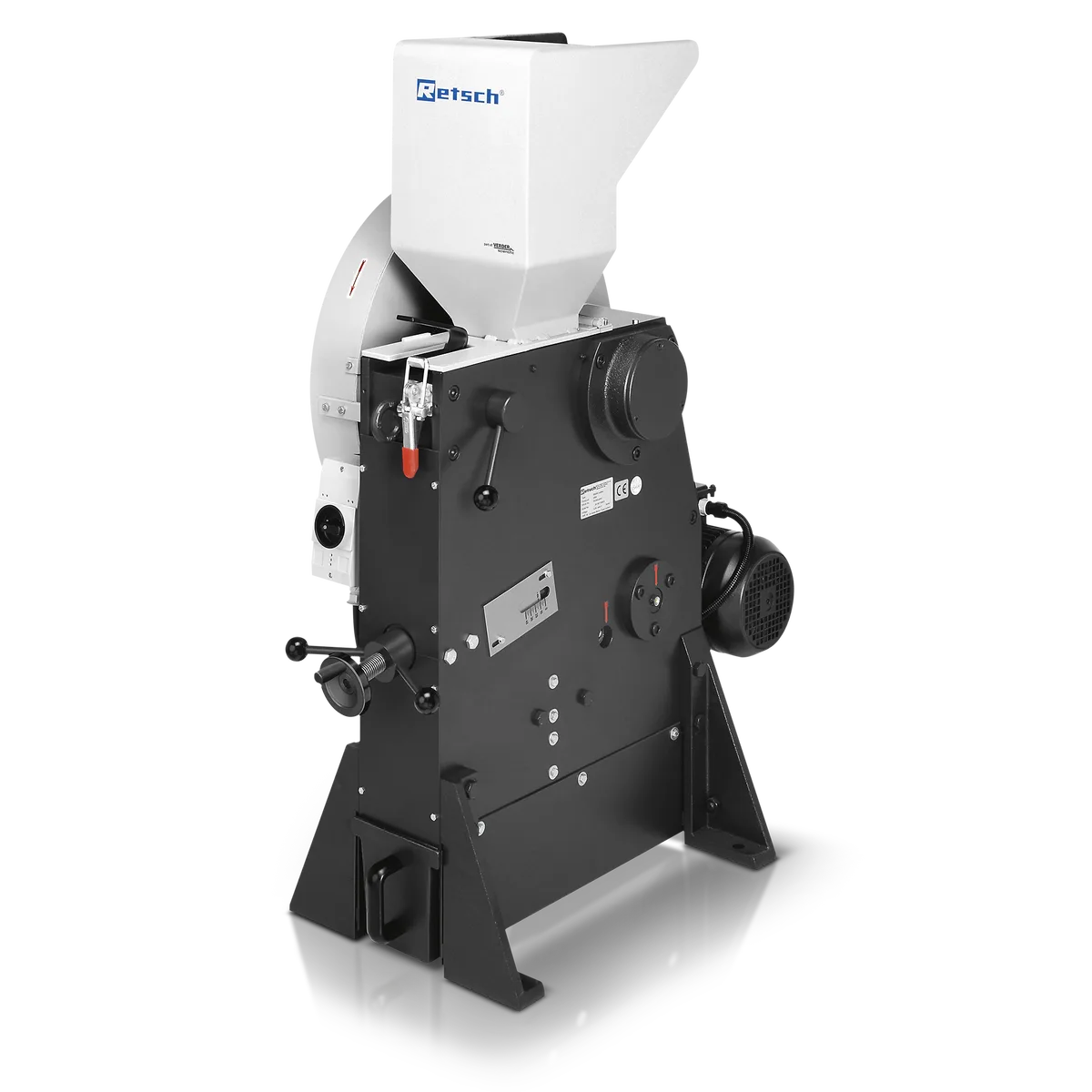

BB 200: Jaw Crusher
Brand: Retsch | Category: Scientific & Laboratory Equipment
Floor standing jaw crusher aimed at fineness rather than feed size, taking medium hard, hard, brittle and tough material down to below 2 mm at up to 300 kg per hour. Grinding tools are available in several materials, so the crusher can be matched to samples where contamination from the jaws would affect the later analysis.
Technical Specifications
| Parameter | Value |
|---|---|
| Feed material | medium-hard, hard, brittle, tough |
| Size reduction principle | pressure |
| Max. feed size | 90 mm |
| Final fineness | 2 mm |
| Throughput | 300 kg/h |
| Material of grinding tools | manganese steel, stainless steel, tungsten carbide, steel 1.1750 (for heavy-metal free grinding) |
| Jaw width | 90 x 90 mm |
| Gap width setting | 0 - 30 mm |
| Gap width display | scale |
| Zero point adjustment | yes |
| Hinged hopper | yes |
| Dust extraction unit | yes |
| Maintenance- and lubricant-free sliding bearing | yes |
| Process line version | optional |
| Collector capacity | 5 l |
| Drive | 1-phase motor / 3-phase motor |
| Drive power | 1.5 kW |
| Electrical supply data | different voltages |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
