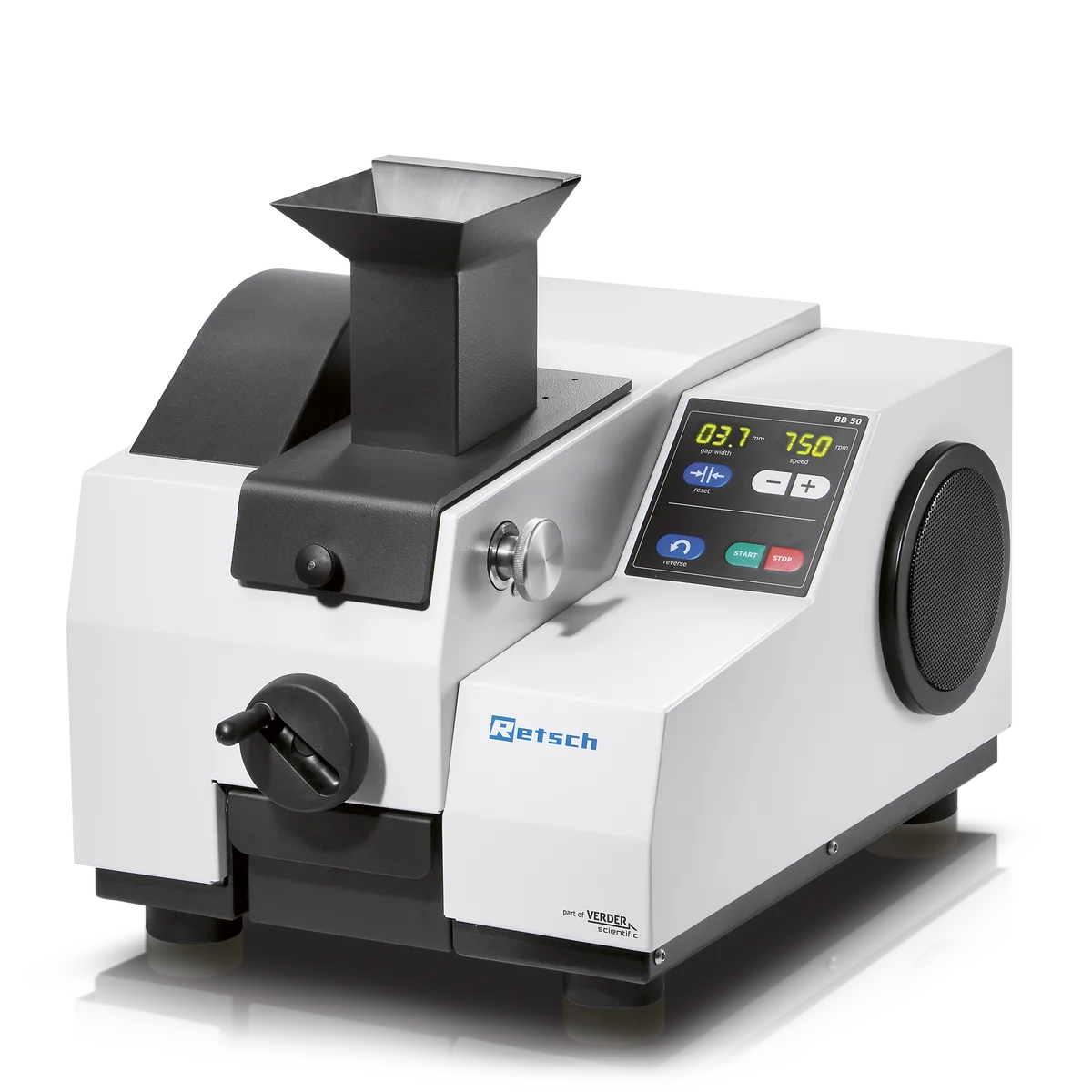

BB 50: Jaw Crusher
Brand: Retsch | Category: Scientific & Laboratory Equipment
The compact benchtop jaw crusher in the range, designed for laboratories where bench space is limited and sample quantities are small. It crushes medium hard, hard, brittle and tough material down to below 0.5 mm, with the gap width set digitally in 0.1 mm increments so a size reduction step can be reproduced exactly.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Final fineness | 0.5 mm |
| Max. feed size | 40 mm |
| Material of grinding tools | manganese steel, stainless steel, tungsten carbide, zirconium oxide, steel 1.1750 (for heavy-metal free grinding) |
| Jaw width | 45 x 59 mm |
| Gap width setting | 0 - 11 mm in increments 0.1 mm |
| Collector capacity | 3 l |
| Drive power | 1.1 kW |
| Power connection | 1-phase |
| W x H x D closed | 420 x 460 x 560 mm |
| Net weight | ~ 79 kg |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
