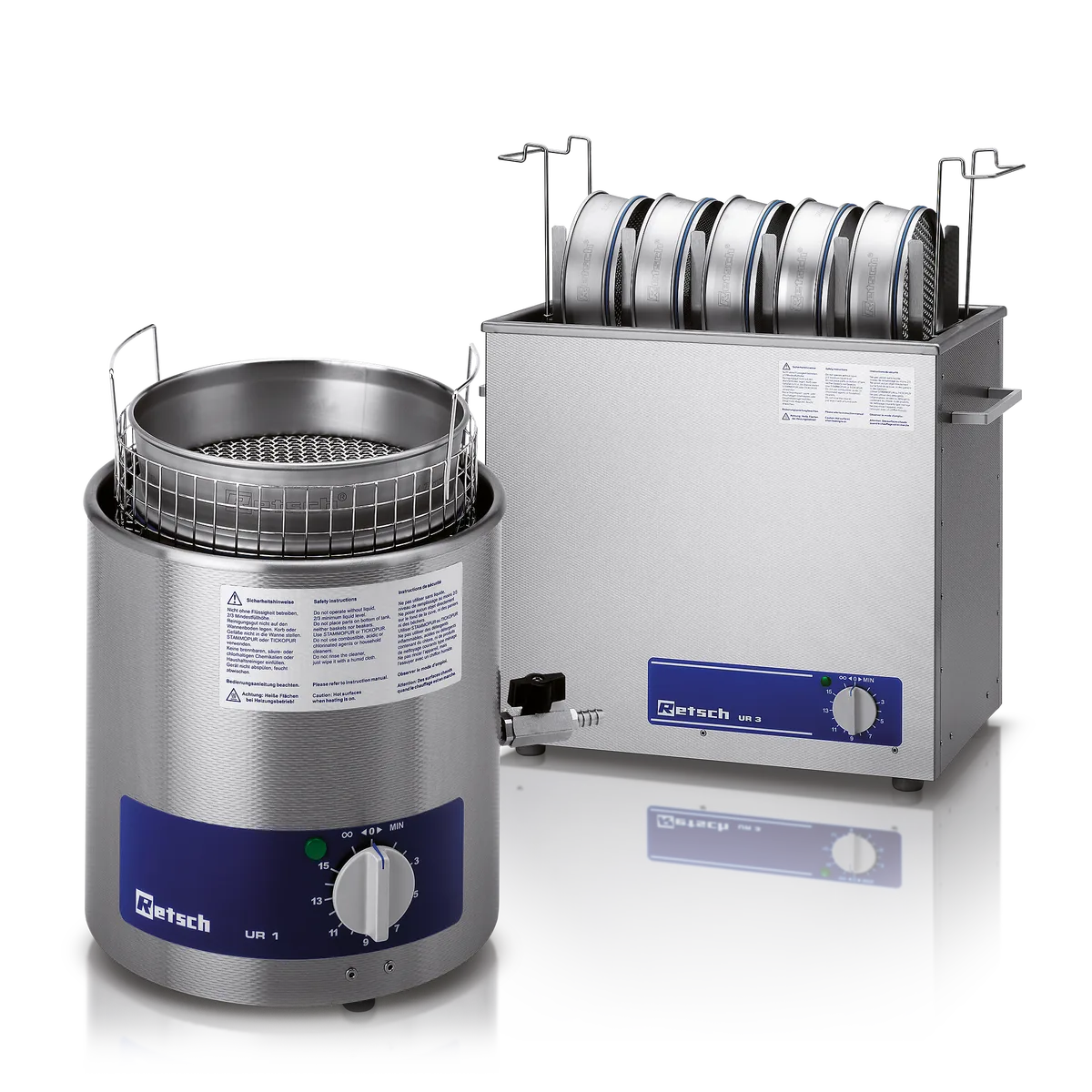

UR Series: Ultrasonic Baths
Brand: Retsch | Category: Scientific & Laboratory Equipment
Ultrasonic baths for cleaning test sieves and grinding tools between samples. Removing residue from a sieve mesh matters because trapped particles change the effective aperture, and ultrasonic cleaning reaches the mesh without the mechanical damage that brushing causes.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Batch size / feed quantity | UR 1: 1 sieve 200 x 50 mm, 8" x 2" ; UR 2: 1 sieve 450 x 100 mm ; UR 3: 5 sieves 200 x 50 mm, 8" x 2" |
| Time setting | 0 - 15 min |
| Container volume | UR 1: 5.7 l ; UR 2: 42 l ; UR 3: 45 l |
| Oscillating tank Ø x H / W x H x D | UR 1: 24.5 x 13 cm ; UR 2: 52 x 20 cm ; UR 3: 50 x 30 x 30 cm |
| Power connection | 1-phase |
| W x H x D | UR 3: 630 x 530 x 350 mm |
| Ø x H / W x H x D | UR 1: 260 x 260 mm ; UR 2: 570 x 460 mm |
| Net weight | UR 1: ~ 5 kg ; UR 2: ~ 21 kg ; UR 3: ~ 27.5 kg |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
