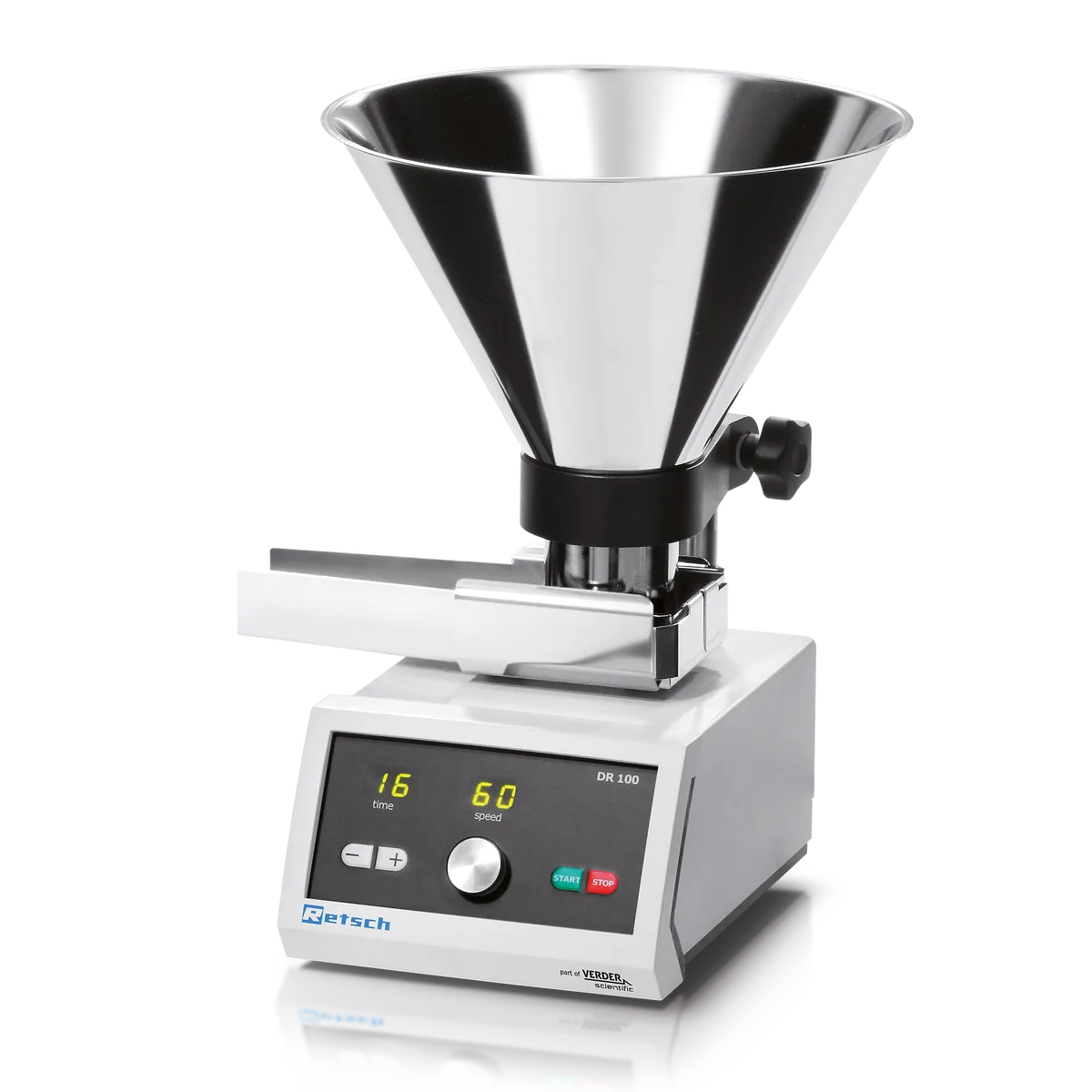

DR 100: Vibratory Feeder
Brand: Retsch | Category: Scientific & Laboratory Equipment
Vibratory feeder that meters pourable bulk material and fine powder into a mill, divider or analyser at a steady rate. A continuous, even feed is what makes throughput and grinding results reproducible, particularly when a mill is running unattended.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Material feed size | 2 mm (15 mm chute) ; 6 mm (40 mm chute) ; 12 mm (75 mm chute) |
| Time setting | digital, 1 - 99 min / continuous operation |
| Speed setting2 | digital, 1 - 99 / 0 - 5 l/min, infinitely adjustable |
| Chute width | 15 mm / 40 mm / 75 mm / 75/40 mm |
| Chute length | 210 mm |
| Hopper volume | 2.8 l (15 mm chute) ; 2.8 l (40 mm chute) ; 3.5 l (75 mm chute) ; 3.5 l (75/40 mm chute) |
| Power connection | 1-phase |
| W x H x D | 260 x 420 x 280 mm |
| Net weight | 9.7 kg |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
