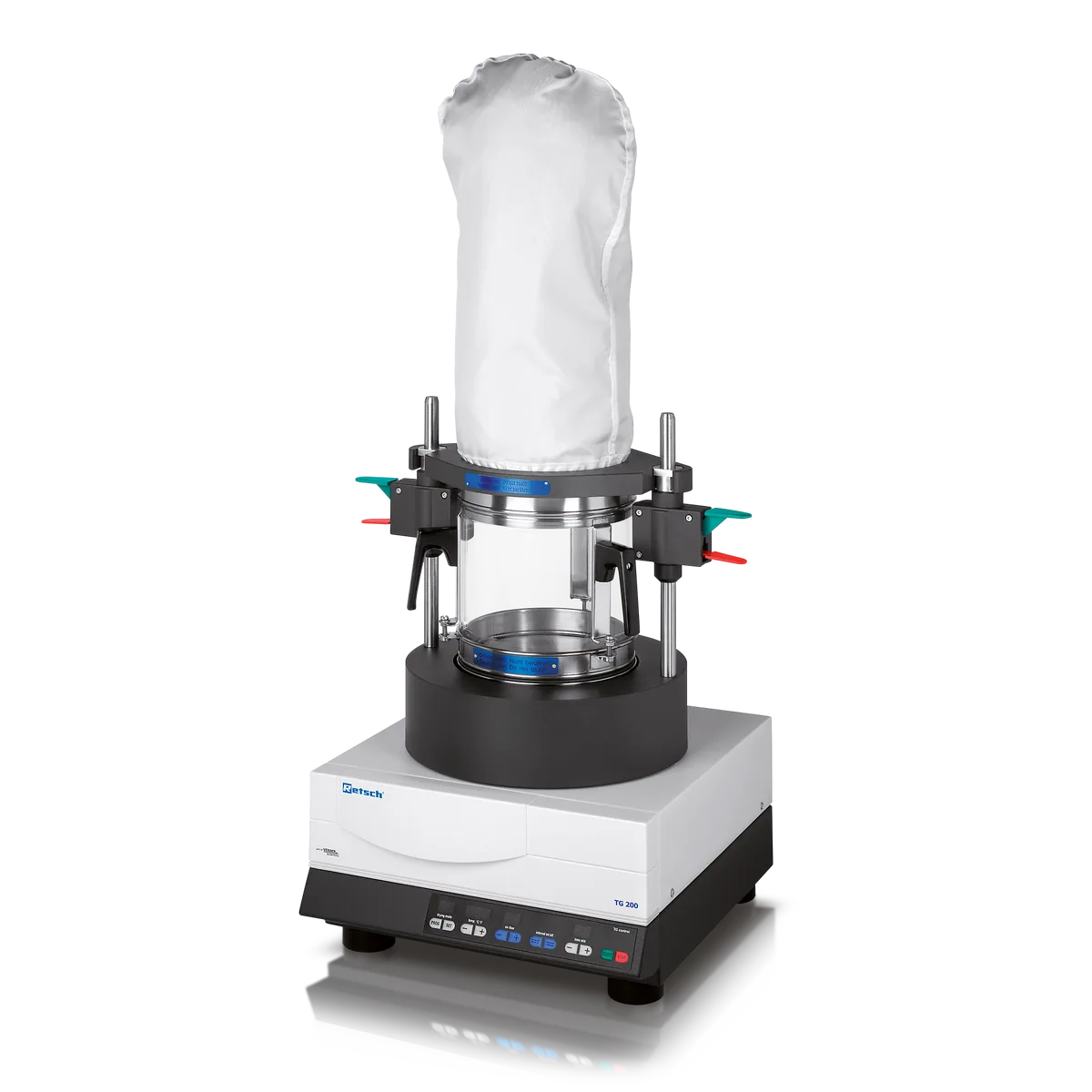

TG 200: Fluid Bed Dryer
Brand: Retsch | Category: Scientific & Laboratory Equipment
Fluid bed dryer that dries bulk material in a stream of warm air before milling or sieving, so moisture does not distort the particle size result. The material is held in suspension by the air stream, which gives short drying times and even treatment without local overheating.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Material feed size | > 100 µm |
| Volume flow | 185 m3/h |
| Time setting | digital, 1 - 99 min / 2 - 9 hours / continuous operation |
| Temperature control | continuously adjustable, 40 - 130 °C (depending on air throughput rate) |
| Drying time | 5 - 20 min, depending on product, quantity, moisture content |
| Container volume | 1 x 6 l / 3 x 0.3 l |
| Electrical supply data | 200-240 V, 50/60 Hz |
| Power connection | 1-phase |
| W x H x D | 400 x 1000 x 480 mm |
| Net weight | ~ 21 kg |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
