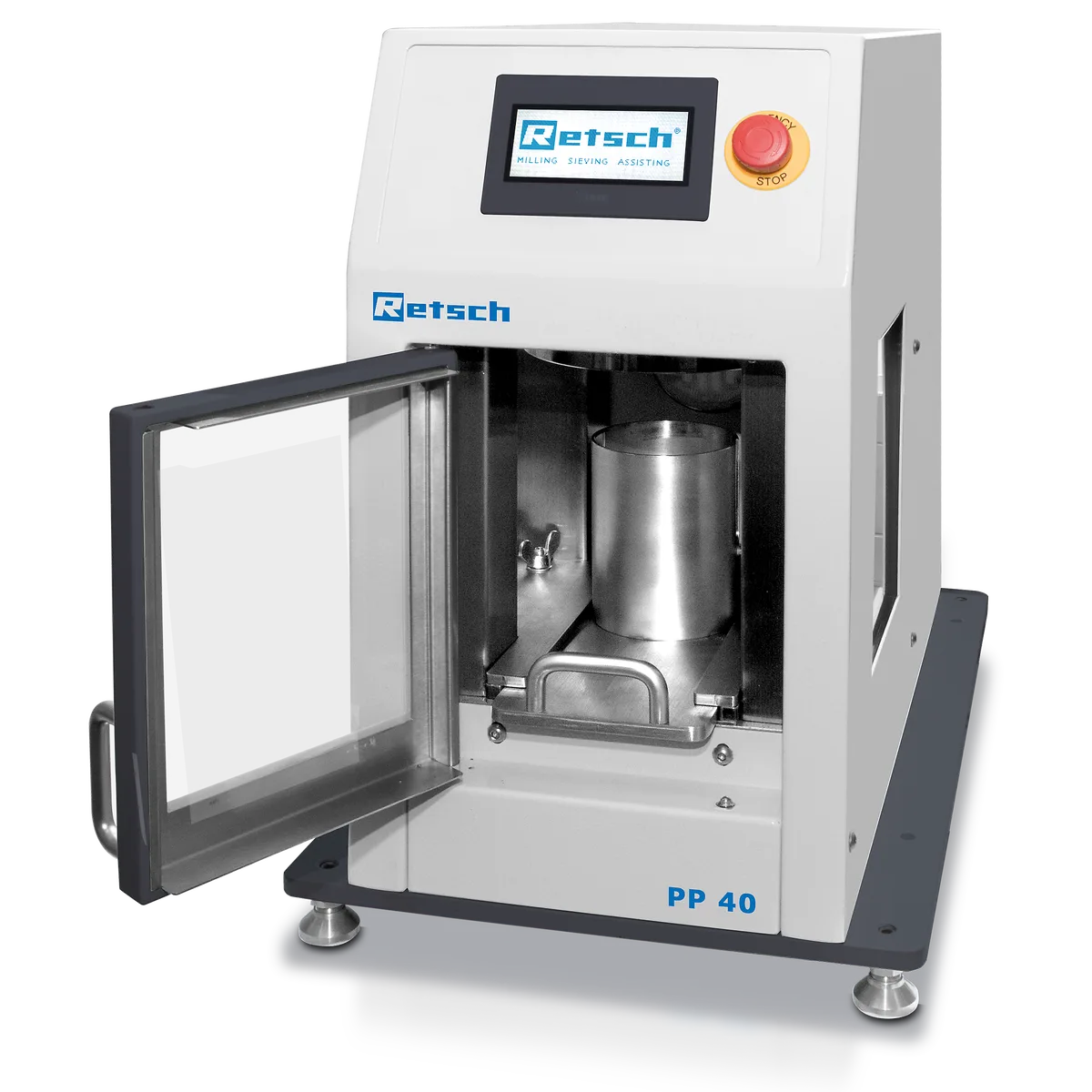

PP 40: Pellet Press
Brand: Retsch | Category: Scientific & Laboratory Equipment
Benchtop hydraulic press that compacts powdered samples into solid pellets for X-ray fluorescence analysis. Pressing force is up to 40 tons. Consistent pellet density matters for XRF because a poorly formed pellet changes the measured intensity, so a controlled press is part of the analytical chain rather than an accessory.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. pressure | 40 t, automatic press |
| Pressure force | 0 - 40 t (1 - 400 kN) |
| Pressure force increase / holding / decrease time | fix ramp / 1 - 99 s / fix ramp |
| Electrical supply data | 100-120 V, 50/60 Hz; 220-240 V, 50/60Hz |
| Power connection | 1-phase |
| W x H x D | 335 x 495 x 570 mm |
| Net weight | 120 kg |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
