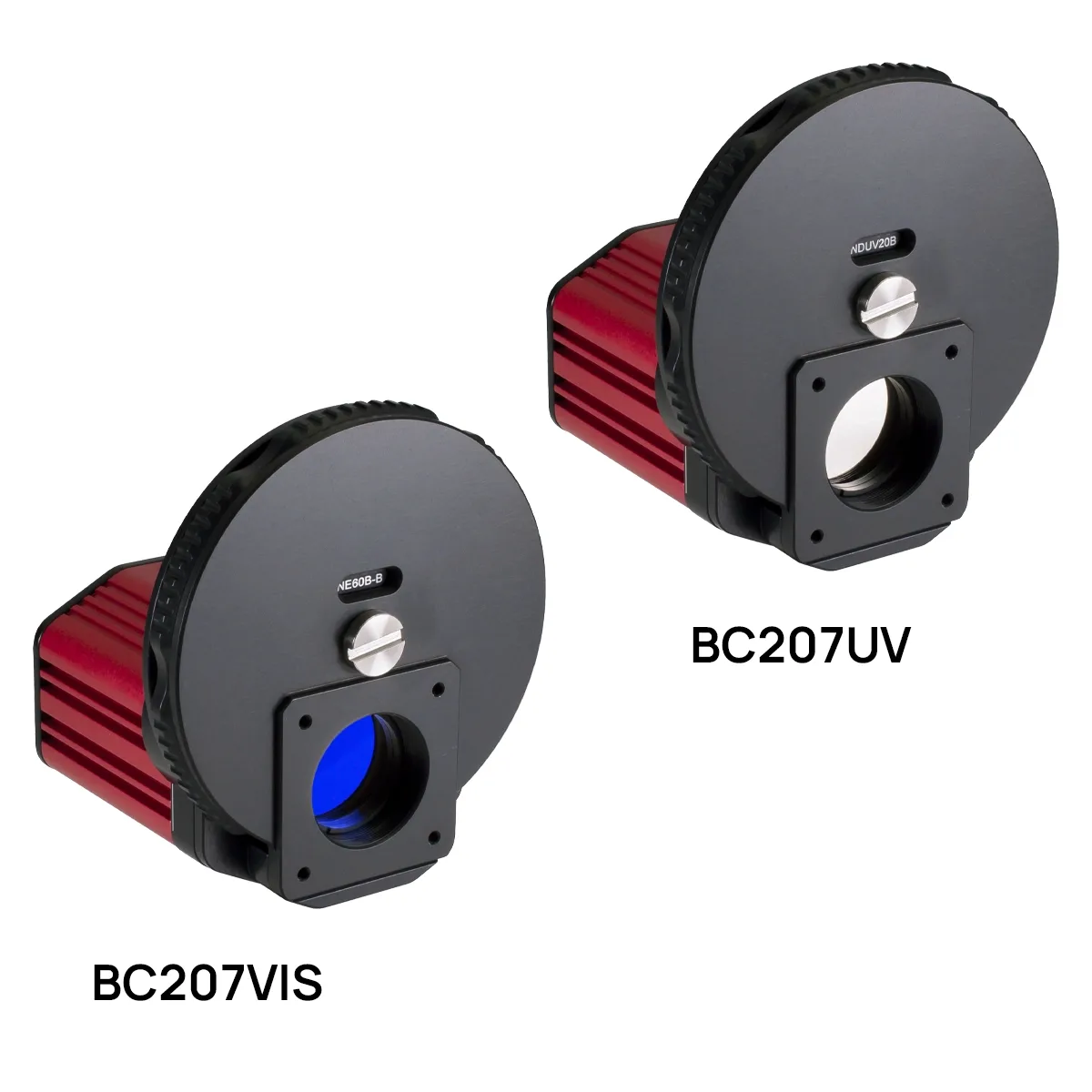

BC200 Series CMOS Camera Beam Profilers
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Camera based profilers giving a full two dimensional analysis of a laser beam, including single pulse capture. Supplied with neutral density filter sets, they cover the deep ultraviolet or the visible and near infrared.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength ranges | 245 to 400 nm or 350 to 1100 nm |
| Beam diameter | 20 micrometres to 7.0 mm or to 10.0 mm |
| Resolution | 2448 x 2048 pixels (BC207) or 4096 x 2992 pixels (BC210) |
| Pixel size | 3.45 micrometres square; global shutter |
| Power range | 20 fW to 1 W depending on model and filter |
| Pulse frequency | up to 37 kHz for single pulse detection |
