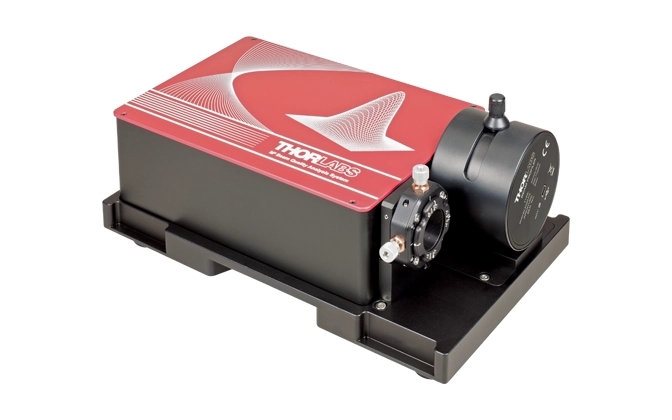

M2MS Complete M-Squared Measurement Systems
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Turnkey systems that measure laser beam quality, reporting M squared, divergence, focus diameter, waist position and Rayleigh length. Factory aligned optics and an internal translation stage automate the ISO 11146 measurement.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | System wavelength ranges from 250 nm to 2700 nm depending on configuration |
| Internal translation stage travel | 100 mm, maximum velocity 500 mm/s |
| Effective translation range | 200 mm about the focal point |
| M squared measurement range | 1.0 and above with no upper limit |
| Typical M squared accuracy | plus or minus 5% |
| Typical measurement time | 15 to 30 s; compliant with ISO 11146 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
