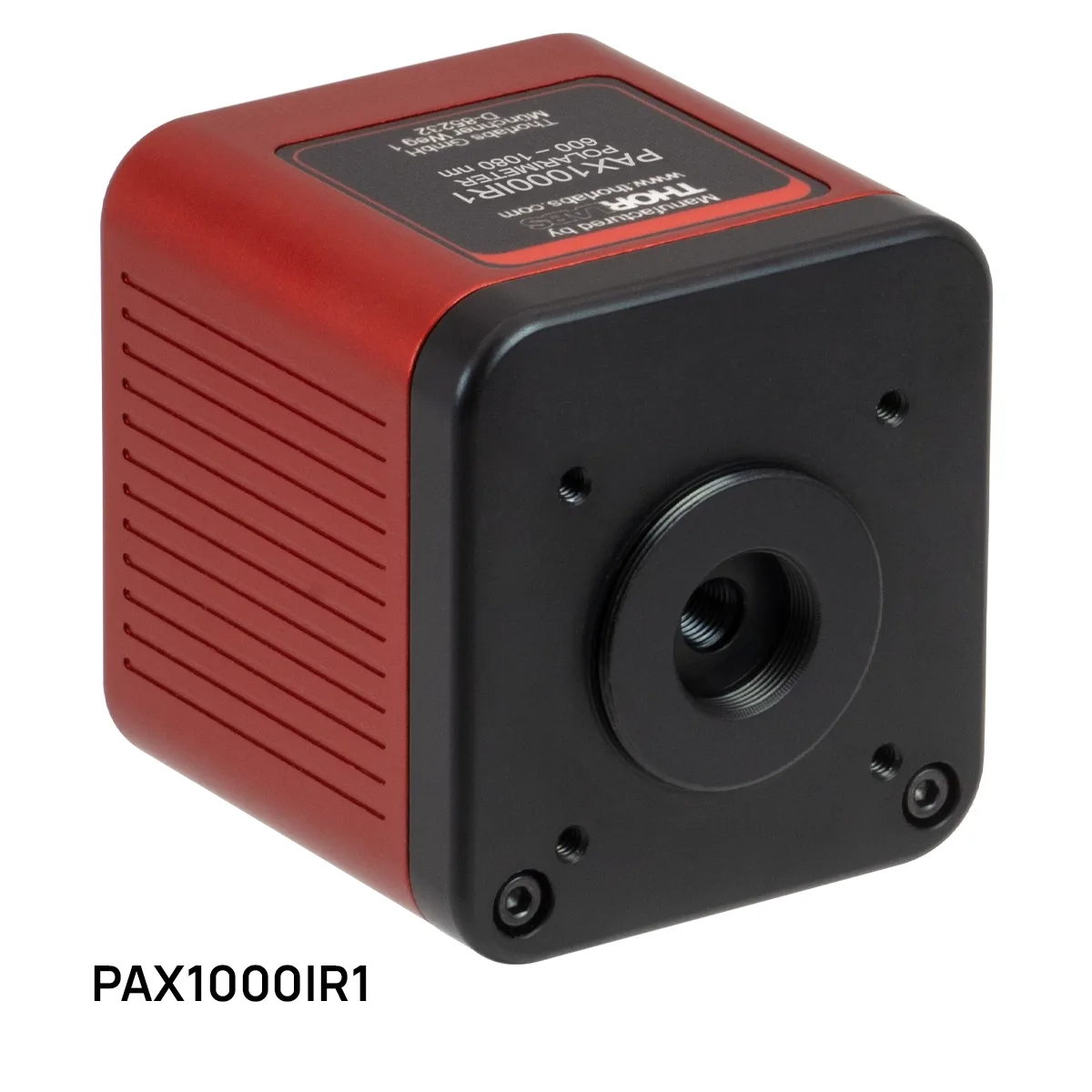

PAX1000 Series Polarimeter Systems
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Rotating wave plate polarimeters that measure the full state of polarisation of a collimated or fibre coupled beam and plot it on the Poincare sphere. They also report degree of polarisation and extinction ratio.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength ranges | 400 to 700 nm, 600 to 1080 nm and 900 to 1700 nm |
| Dynamic range | 70 dB, -60 dBm to +10 dBm |
| Azimuth and ellipticity accuracy | plus or minus 0.25 degrees |
| Degree of polarisation accuracy | plus or minus 1.0% |
| Sampling rate | 30 samples per second default, up to 400 samples per second |
| Specification | Free space aperture 3 mm, or FC/PC fibre input via the included collimator |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
