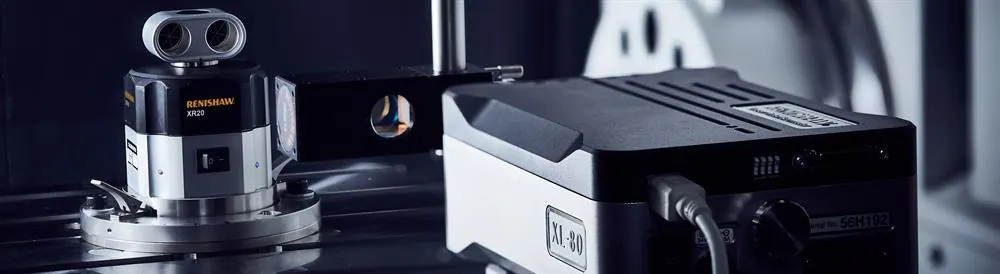

XL-80 laser interferometer system
Brand: Renishaw | Category: Scientific & Laboratory Equipment
A laser interferometer for measuring and calibrating motion systems, machine tools and coordinate measuring machines. It measures linear, angular, rotary, straightness and squareness errors directly, giving traceable data that can be used to set machine compensation.
Technical Specifications
| Parameter | Value |
|---|---|
| Laser frequency accuracy | +/-0.05 ppm over three years |
| Linear measurement accuracy | +/-0.5 ppm over the whole environmental range |
| Linear measurement range | up to 80 m |
| Linear resolution | 1 nm |
| Reading rate | up to 50 kHz |
| Maximum linear measurement speed | 4 m/s |
