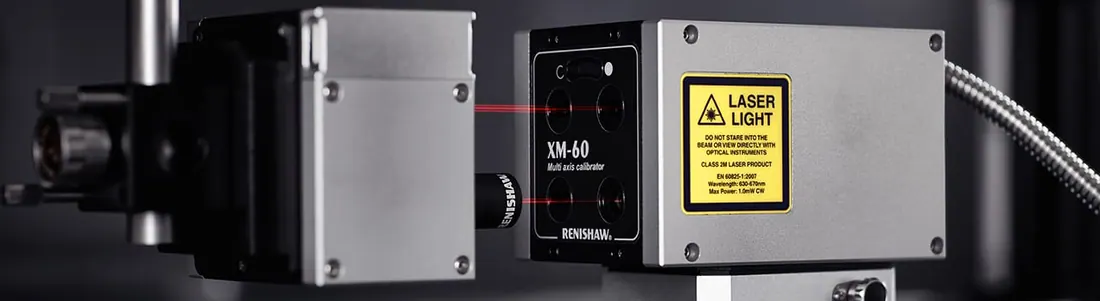

XM-60 multi-axis calibrator
Brand: Renishaw | Category: Scientific & Laboratory Equipment
A laser system that measures errors in six degrees of freedom along a linear axis from a single set-up. It captures linear, horizontal and vertical straightness, pitch, yaw and roll together, so all geometric errors in an axis come from one measurement run.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Measures six degrees of freedom simultaneously from a single set-up |
| Specification | Suits machine tools, CMMs, XY stages and other motion systems |
| Specification | Supplied with a certificate of conformity unique to the component serial numbers |
| Recommended recalibration period | two years in a normal environment |
| Specification | Analysed in CARTO software |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Renishaw equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
