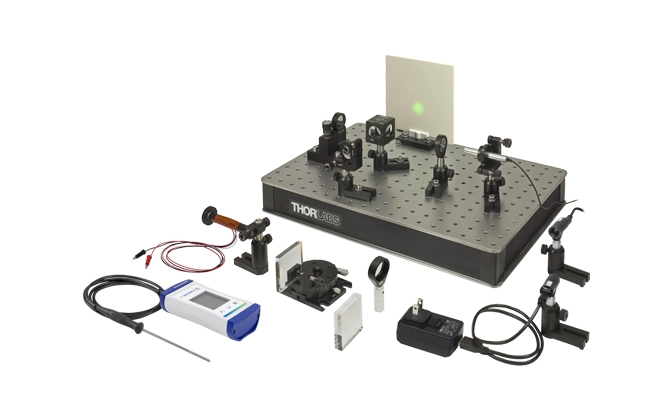

EDU-MINT2 Michelson Interferometer Educational Kit
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A teaching Michelson interferometer with laser and LED sources, so students can compare coherence lengths and produce white light fringes. It is also used to measure the refractive index of Plexiglas and the thermal expansion of an aluminium rod.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Builds and examines a Michelson interferometer, including its second output |
| Specification | Laser and LED sources supplied to compare coherence lengths |
| Specification | Produces white light interference with the included white LED |
| Specification | Measures the refractive index of Plexiglas plates |
| Specification | Measures the thermal expansion coefficient of an aluminium rod |
| Specification | All hardware included except a 12 VDC 2 A variable supply for the thermal experiment |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
