BeamMaster-USB System
Brand: Coherent | Category: Scientific & Laboratory Equipment

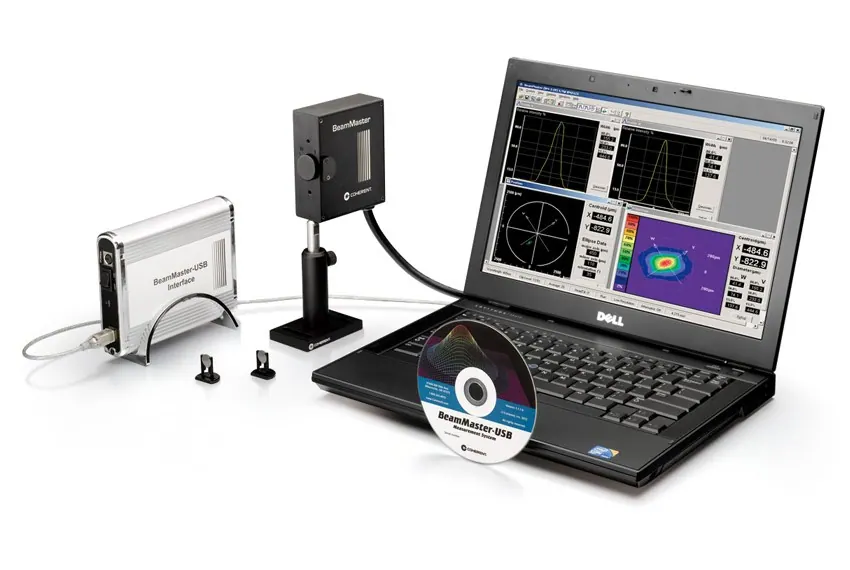

BeamMaster-USB is a scanning multiple knife-edge beam profiler for continuous wave lasers. Its large dynamic range lets it measure small diameter and focused beams from 3 um to 8 mm across a wavelength range of 190 nm to 1800 nm.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | scanning multiple knife-edge beam profiler |
| Laser compatibility | CW |
| Beam size range | 3 um to 8 mm at 190 to 1100 nm |
| Beam size range | 3 um to 2 mm at 800 to 1800 nm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
