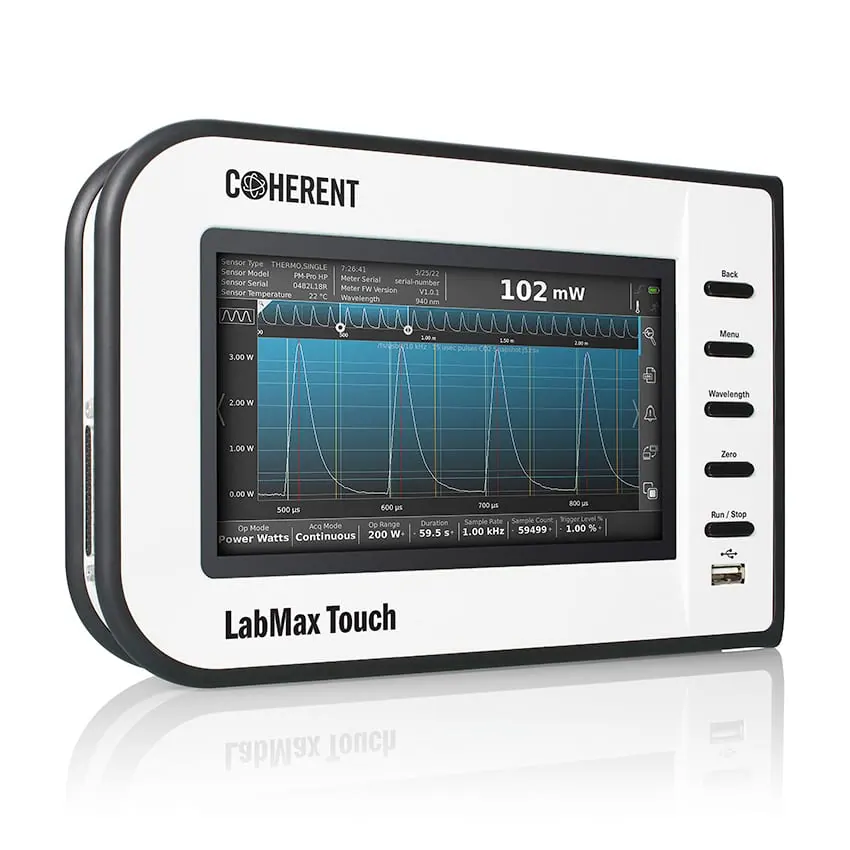

LabMax Laser Power & Energy Meters
Brand: Coherent | Category: Scientific & Laboratory Equipment
LabMax are bench meters that give NIST traceable measurements of continuous wave and pulsed laser output, with statistics and data logging. Five models cover touchscreen, traditional display and PC controlled operation and work with Coherent thermopile, pyroelectric, fast thermoelectric and semiconductor sensors.
Technical Specifications
| Parameter | Value |
|---|---|
| LabMax Touch | power and energy, touchscreen LCD, USB, RS-232 and Ethernet |
| LabMax Touch Pro | adds 1 MHz sample rate with PowerMax-Pro sensors and extra pulse analysis |
| LabMax TOP | power and energy, graphical LCD, USB and RS-232 |
| LabMax-Pro SSIM | PC controlled, samples at 20 kHz for modulated and long-pulse lasers |
| LabMax TO | power only, graphical LCD, USB and RS-232 |
| Sensor compatibility | fast thermoelectric, thermopile, semiconductor and pulse energy |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
