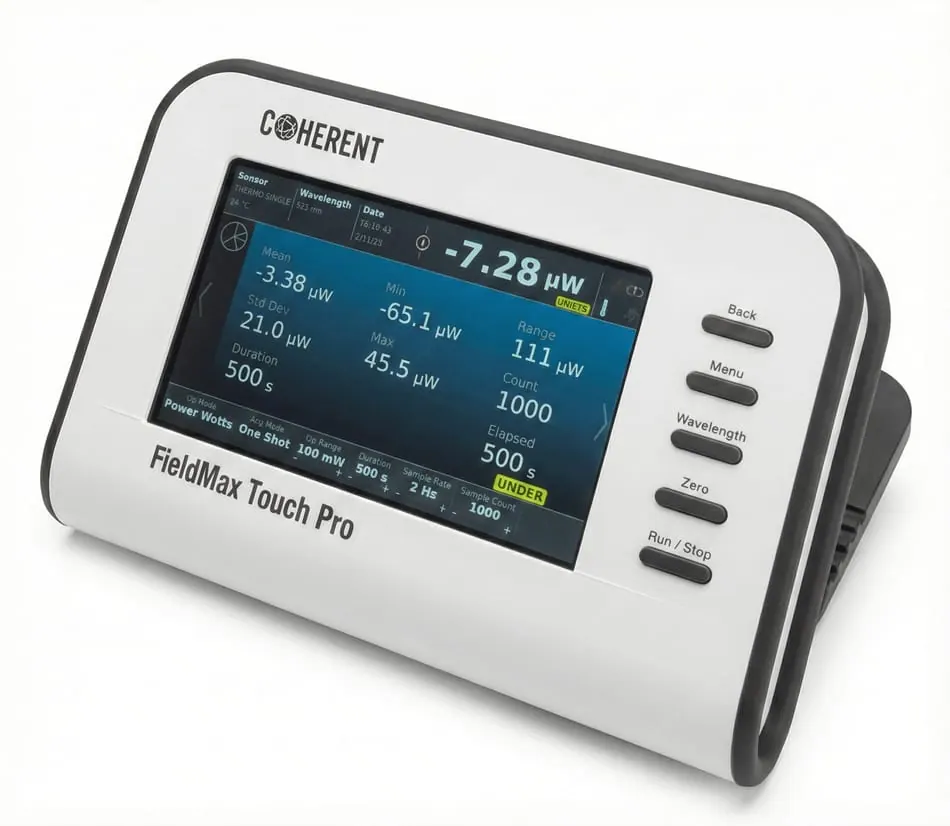

FieldMax Touch
Brand: Coherent | Category: Scientific & Laboratory Equipment
FieldMax Touch and FieldMax Touch Pro are handheld meters that measure laser power and energy from microwatts to tens of kilowatts. They carry a 5 inch colour touchscreen with Ethernet and USB connectivity and are calibrated to ISO 17025.
Technical Specifications
| Parameter | Value |
|---|---|
| FieldMax Touch sensor compatibility | thermopile, optical and transverse thermoelectric (PowerMax-Pro) |
| Specification | FieldMax Touch Pro adds pyroelectric (EnergyMax) sensor support |
| Maximum pyroelectric repetition rate, Touch Pro | 1000 Hz, every pulse, sensor dependent |
| Power sampling rate | 10 Hz with thermopile, optical and PowerMax-Pro sensors |
| Calibration uncertainty (k=2) | +/-1 % for the meter |
| Interfaces | Ethernet, USB mini-B to PC and USB Type-A flash drive |
