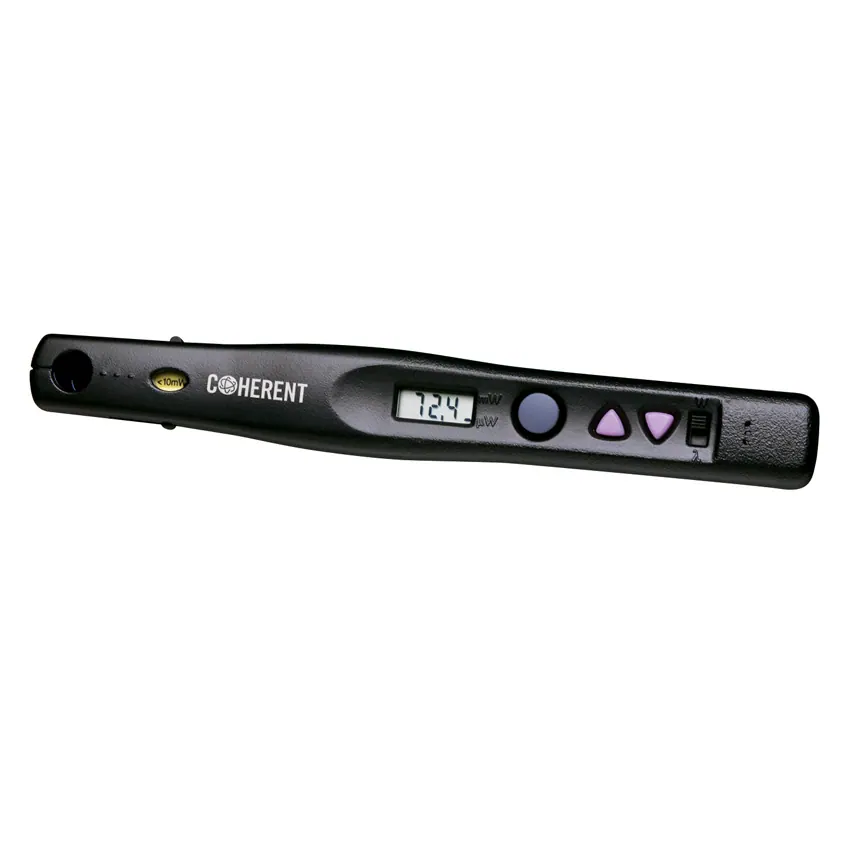

LaserCheck Power Meter
Brand: Coherent | Category: Scientific & Laboratory Equipment
LaserCheck is a pen sized handheld laser power meter with a silicon sensor covering the visible to near infrared. It measures from microwatts to 1 W, and its long thin body lets it sample beams located inside an instrument.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength range | 400 nm to 1064 nm |
| Power range | 3 uW to 1 W, depending on wavelength |
| Accuracy | +/-5 % |
| Aperture size | 8 mm, power sampling rate 10 Hz |
| Size (H x W x D) | 168 x 23 x 30 mm, weight 44 g |
| Compliance | CE, RoHS, WEEE, ISO 17025 |
